美国EATON Hansen制冷、空调专用冷却快速接头产品解决方案

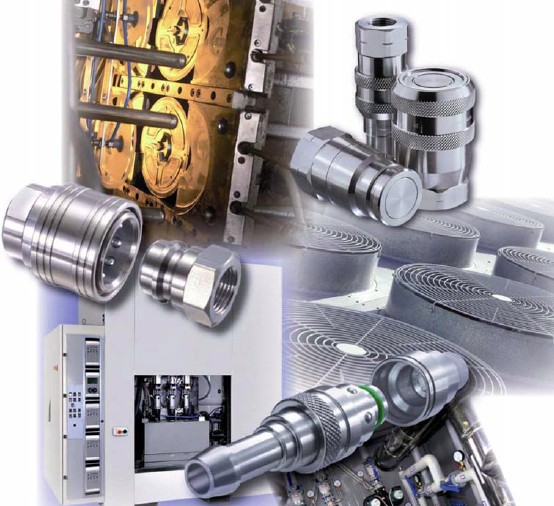

EATON Hansen Quick Couplings for Cooling Applications Solutions

Eaton® Hansen™ Quick Disconnect Coupling
【EATON Hansen W10000制冷专用接头】


EATON Hansen制冷专用接头采用干式连接以及HNBR和NERO等特殊密封材料，对冷媒有良好的耐性，设计用于制冷系统、空调、气体和液体传输应用领域。拥有众多的配件可以满足现场不同需求。 应用：专门应用于制冷设备以及空调的安装与维护，可以使用在包括R22，R134A，R404A，R410A，R407C，R507等各类冷媒中。

主体尺寸：8mm,12mm,16mm
材质：钢
螺纹连接形式：螺纹连接，焊接，板式连接
工作压力：钢质接头承压为1,800psi (125bar)

EATON Hansen Quick Couplings for Cooling Applications_PDF

【EATON Hansen制冷专用接头产品系列】

1、EATON W10000系列
2、EATON HK系列
3、Aeroquip 5400 Series制冷行业用快速接头
Aeroquip 5400 Series/ Low Air Inclusion Refrigerant

EATON HANSEN DB Series

Our DB Series is designed for fluid handling where minimum spillage and minimum air inclusion are required. Made of 316L stainless steel, they are suitable for use mainly in chemical but also cooling applications. Body sizes go from 1/4" to 1”. This series is designed for applications using working pressures up to 190 bar / 2,800 psi and is available in a wide range of seal materials such as FKM, EPDM, FFKM.

EATON HANSEN HK Series – STAINLESS STEEL & BRASS

Our HK Series is designed for general purpose transfer service mainly in chemical but also cooling applications. It is available in sizes from 1/8” to 2”1/2, in brass, AISI 303 & AISI 316 stainless steels. It meets ISO 7241-1 Series B standard requirements and is available in a wide range of seal materials such as PTFE, FKM, EPDM, CR and FFKM. Working pressures are up to 345 bar /
5,000 psi. Many options such as the safety sleeve lock, one-way shut-off or straight-thru design, release clamp with chain, etc. are available

EATON HANSEN L7000 Series – STAINLESS STEEL & BRASS NICKEL-PLATED

Our L7000 Series is a rugged-construction range of full-flow couplings. Available in stainless steel and nickel-plated brass, it is suitable for many varieties of fluids. Working pressures are up to 300 bar / 4,350 psi, depending on size and materials. It is a pull-to-connect coupling (connection is complete after pulling back the release sleeve). The L-7000 series is available with female end connections and BSPP threads, from 1/8" to 2”.

Eaton Hansen J50000 Series

Our J50000 series is ideal for applications causing vibrations and oscillations, such as the injection molding industry. Its flat face design minimizes spillage during disconnections and limits inclusion of air into the circuit during connections. It’s double-sealed when connected. Working pressures are up to 50 bar / 725 psi and flow capacity is excellent. Connection is complete after pulling back the release sleeve. Our J-50000 series is available in 6 & 9 mm with 1/4"and 3/8" BSPP female or male-end connections.

Eaton Hansen J60000 Series

Our J60000 series is designed for applications requiring cooling or heat regulation, particularly in the injection molding industry. It is compatible with other makes of couplings of the same design. Available with single or double shut-off, the design and rugged materials used make it a long-lasting and reliable coupling. Working pressures are up to 16 bar / 232 psi and flow
capacity is excellent. Connection is complete after pulling back the release sleeve. Available in 6 & 9 mm sizes with female, male or hose-tail end connections.

Eaton Hansen J70000 Series

Our J70000 series is designed for applications requiring cooling or heat regulation in the injection molding industry. It is compatible with other makes of couplings of the same design. This full-flow series is a rugged and durable coupling. Working pressures are up to 10 bar / 145 psi. The socket design allows the coupling to fit perfectly into the molds. Different circuits are easily identified by means of colored rings. Connection is complete after pulling back the release sleeve. Our J-70000 series is available in 8 & 12 mm with female, male or hose-tail end connections.

Eaton Hansen ST Series – STAINLESS STEEL & BRASS

Our straight-through coupling series is designed for use where minimum pressure drop is required and valving is not needed. The manually operated design is ideal for use on many fluid transfer systems. Featuring a ball lock design, the smooth bore permits free flow of gas or liquid. Both male and female NPTF, BSPP and hose stem connections are available. Additional
options include sleeve lock, five seal options, dust caps and dust plugs.
