Parker high performance non-return valves

Parker 止回阀 - Parker Check Valves
Non Return Check Valve (10,000 PSI) - Hi Check Series

Parker Hi-Check series of non-return valves - 派克止回止回阀 (10,000 PSI) – HI 止回阀系列
派克止回阀 (10,000 PSI) - Hi Check 系列

派克的高性能止回阀可为用户提供高达 10,000 psi/689 bar 的冷工作压力额定值，最大开启压力为 10 psi。Parker 的 Hi Check 系列高性能止回阀设计用于过程仪表应用中流体和气体的单向流动控制。有两种单向阀型号可供选择，冷工作压力为 10000 PSI (689 bar) 和 6000 PSI (414 bar)。两个止回阀的开启（或“开启”）压力均为 10 PSI (0.7 bar)。这些坚固的止回阀采用两件式金属阀座设计，可最大限度地减少泄漏风险。Parker 止回阀可选择一体式外螺纹或内螺纹 NPT，或单或双套圈压缩式端部，压缩端使用户无需使用锥形螺纹和螺纹密封剂 - 进一步减少潜在泄漏的数量路径并避免系统污染问题。

入口和出口连接范围广泛，包括 1/4"、3/8" 和 1/2" 的英制尺寸，以及 6 mm、10 mm 和 12 mm 的公制尺寸。止回阀旨在满足 ANSI/ASME B.16.34 的压力和温度要求，但受阀座材料的限制。可提供符合 NACE 的版本。

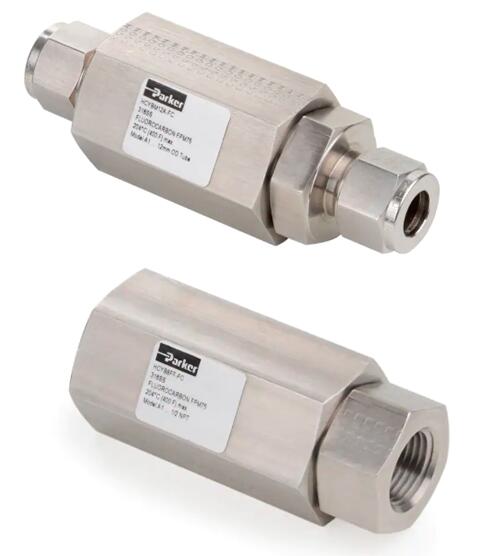

PARKER Non Return Check Valve (10,000 PSI) - Hi Check Series

特点和优点：
ANSI/ASME B.16.34
热码可追溯

Hi-Check 止回阀
对于需要单向流量控制的过程仪表应用，我们推荐派克的 Hi-Check 系列止回阀。这些高性能止回阀提供高达 689 bar/10,000 psi 的最大冷作压力额定值，适用于化工、石化以及石油和天然气海上工业中的流体和气体应用。

Parker 坚固的 Hi-check 阀采用两件式阀体设计，可最大限度地降低泄漏风险。它们还提供外螺纹和内螺纹压缩端的选择，以消除对锥形螺纹和密封剂的需求。因此，这些高性能止回阀进一步减少了潜在的泄漏，同时避免了系统污染并降低了安装成本。

派克的高性能止回阀
Parker 的高性能止回阀采用 316 不锈钢作为标准制造，可为您的行业带来诸多好处。下面我们详细介绍了他们的 Hi-check 止回阀的主要特点和优点：

自定心密封
低噪音排放
坚固的设计
零线圈限位检查弹簧
环保密封连接器螺纹
入口和出口连接的综合选择
ANSI/ASME B.16.34 压力和温度合规性
派克的所有高性能止回阀都经过工厂完全静压测试和热可追踪。此外，还有多种 O 形圈材料可供选择，包括 FP75 和 V1238-05 氟碳橡胶，用于高压应用的爆炸减压和抗挤压。为了进一步定制，Hi-check 止回阀的阀座材料也有多种材料，如丁腈和 EPR。

阀门
C系列止回阀
CO系列止回阀
Hi-Check 止回阀
派克 Veriflo 止回阀

Parker's high performance non-return valves can offer the user a cold working pressure rating up to 10,000 psi/689 bar maximum, with a cracking pressure of 10 psi maximum. Parker's Hi Check series high performance non-return valves are designed for unidirectional flow control of fluids and gases in process instrumentation applications. There is a choice of two check valve models, with cold working pressures of 10000 PSI (689 bar) and 6000 PSI (414 bar). Both check valves have an opening (or ‘cracking') pressure of 10 PSI (0.7 bar). These robust check valves feature a two-piece metal seated body design to minimise any risk of leakage. The Parker check valves are available with a choice of integral male or female NPT, or single- or two-ferrule compression style ends, the compression ends enable users to eliminate the use of taper threads and thread sealant – further reducing the number of potential leakage paths and avoiding system contamination problems. There is a comprehensive range of inlet and outlet connections, covering imperial sizes of 1/4", 3/8” and 1/2", and metric sizes of 6 mm, 10 mm and 12 mm. The check valves are designed to meet the pressure and temperature requirements of ANSI/ASME B.16.34, as limited by the seat materials. NACE compliant versions are available. As standard, Hi Check valves are manufactured from 316 stainless steel, with duplex and monel versions optionally available. For maximum applications flexibility, there is an extensive choice of O-ring materials, including FPM75 and V1238-95 fluorocarbon rubber, Buna-N, ethylene propylene rubber and highly fluorinated fluorocarbon rubber.

Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical
- Power Generation

Features/Benefits:
- ANSI/ASME B.16.34
- Heat code traceable

Applications:
- Lubrication skids
- Water Treatment
- Chemical injection skids
- Hydraulic systems for wellhead control
- Emergency shut down
- Pumping packages
- Gas booster systems
- Test equipment

Technical Specifications

Non Return Check Valve (10,000 PSI) - Hi Check Series 型号
