Parker Fittings接头 Tube Fittings

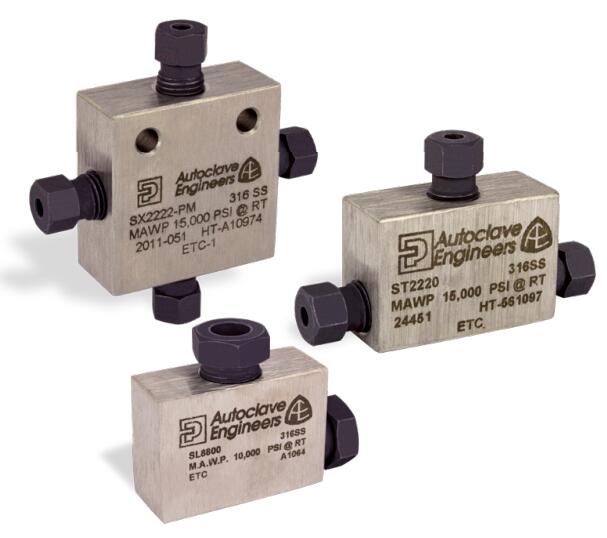

Compression Fitting, 15,000 PSI - SW Series

压缩配件，15,000 PSI - SW 系列 | #15BF2211
Parker 的 SW 系列设计用于低压、15,000 PSI，并利用 Autoclave 的 Speed Bite 连接进行安全安装。这种单套圈压缩套筒连接提供了简单的组装和可靠的气密性能。Parker Autoclave 的 SW 系列采用经过验证的 Speed Bite 连接。该接头设计有单个套圈压缩套筒，适用于高达 15,000 PSI (1034 BAR) 的系统。这种连接可在各种液体或气体服务应用中提供快速、轻松的组装和可靠的气密性能。安装人员会喜欢二硫化钼涂层螺母的低上紧扭矩。此关键功能还有助于防止安装过程中出现磨损。

Compression Fitting, 15,000 PSI - SW Series

Parker's SW Series is designed for low-pressure, 15,000 PSI and utilizes the Autoclave's Speed Bite connection for secure installation. This single-ferrule compression sleeve connection provides easy make-up and reliable bubble-tight performance. Parker Autoclave's SW Series utilizes the proven Speed Bite connection. This fitting is designed with a single ferrule compression sleeve for systems up to 15,000 PSI (1034 BAR). This connection delivers fast, easy make-up and reliable bubble-tight performance, in a variety of liquid or gas service applications. Installers will appreciate the low make-up torque with the Molybdenum Disulfide coated nuts. This key feature also helps to prevent galling during installation.

市场：
- 化工
- 石化
- 石油和天然气

特性/优点：
- 单套圈压缩套管
- 快速轻松地组装连接
- 管道尺寸为 1/16”、1/8"、1/4"、3 /8" 和 1/2"
- 配件由冷加工 316 不锈钢制成
- 二硫化钼涂层压盖螺母以防止磨损
- 工作温度范围为 0°F (-17.8°C ) 至 650°F (343°C)

应用：
- 流体处理系统
- 滑板制造商
- 测试面板

Markets:
- Chemical
- Petro-Chemical
- Oil and Gas

Features/Benefits:
- Single-ferrule compression sleeve
- Fast easy make-up of connection
- Tubing sizes are 1/16”,1/8", 1/4", 3/8", and 1/2"
- Fittings manufactured from cold worked 316 stainless steel
- Molybdenum disulfide-coated gland nuts to prevent galling
- Operating temperatures from 0°F (-17.8°C ) to 650°F (343°C)

Applications:
- Fluid handling Systems
- Skid Panel Fabricators
- Testing Panels

Technical Specifications

Compression Fitting, 15,000 PSI - SW Series 型号
