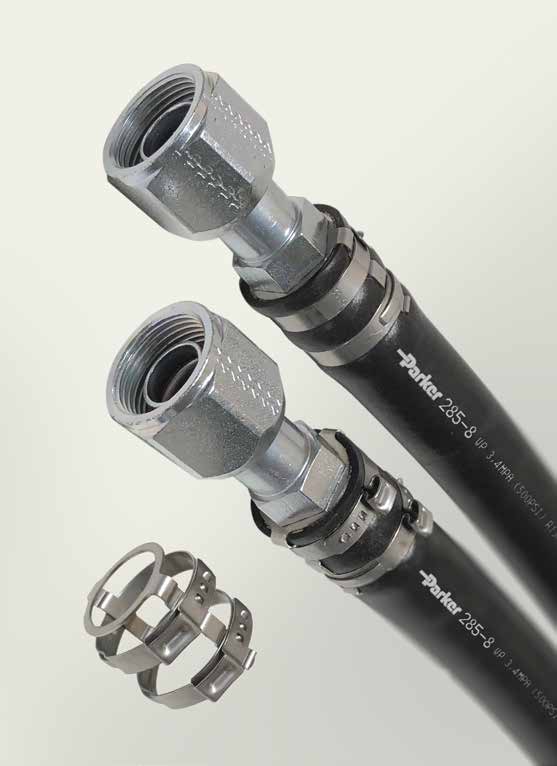

A/C Clip Air Conditioning Hose Fitting- 1A Series Fittings

Parker's A1 Series fittings provide an end to end solution when used with our 285 Refrigeration hose, *A/C Clips and *A/C Clip Chambers.





We are increasing the quality of R134a and R1234yf air conditioning and refrigeration systems with our 1A Series Fittings. To be used with A/C Clips and A/C Clip Chambers and supply the end-user with a high-quality replacement part and a product that can be assembled in the field providing the connection needed for a specific application. Also offering superior flexibility for tight routing and eliminating the need for crimping machines and dies since so many of these applications require the hose and fitting to be assembled on site. This innovative fitting meets SAE J2064 standard and provides and end-to-end solution with Parker's 285 Refrigeration hose and fittings. This hose/fitting combination guarantees low permeation compared to existing products in the market and assembly is quick and easy.



A/C Clip Air Conditioning Hose Fitting- 1A Series Fittings



Markets:
- Transportation
- Construction
- Forestry


Features/Benefits:
- Simplified design
- Ease of orientation
- Superior flexibility for tight routing applications

Applications:
- Refrigerants R134a/ PAG Oil & R1234yf/ PAG Oil

Compatible Hoses:
- 285



Technical Specifications

Application: Air Conditioning
Hose Inside Diameter: 5/16-13/38 inch
Connection Thread Size: varies
Product Style: Female Tube-O-Swivel-Short Pilot, Male Tube-O-Swivel-Short Pilot, Female Tube-O-Swivel-Short Pilot w/ low pressure charge port, Female Tube-O-Swivel-Short Pilot w/ high pressure charge port, Splicer Fitting , Splicer Fittings with Charge Port for R134a, F
Shape: Straight, 45° Elbow, 90° Elbow
Materials of Construction: Steel
Installation: Requires ACCH-6C and ACC-6C, Requires ACCH-8C and ACCH-8C, Requires ACCH-10C and ACC10C, Requires ACCH-12C and ACC-12C, Requires ACCH-16C and ACC-16C, Requires ACCH-8C and ACC-8C, Requires ACCH-10C and ACC-10C



A/C Clip Air Conditioning Hose Fitting- 1A Series Fittings 型号

Part Shape Style Hose I.D. (inch)
5H1A-10-10 45° Elbow Female Tube-O-Swivel- 45° Elbow-Short Pilot 1/2
5H1A-10-12 45° Elbow Female Tube-O-Swivel- 45° Elbow-Short Pilot 5/8
5H1A-10-16 45° Elbow Female Tube-O-Swivel- 45° Elbow-Short Pilot 7/8
5H1A-6-6 45° Elbow Female Tube-O-Swivel- 45° Elbow-Short Pilot 5/16
5H1A-8-8 45° Elbow Female Tube-O-Swivel- 45° Elbow-Short Pilot 13/32
5K1A-10-10 90° Elbow Male Tube-O-Swivel- 90° elbow-Short Pilot 1/2
5K1A-10-12 90° Elbow Male Tube-O-Swivel- 90° elbow-Short Pilot 5/8
5K1A-10-16 90° Elbow Male Tube-O-Swivel- 90° elbow-Short Pilot 7/8
5K1A-6-6 90° Elbow Male Tube-O-Swivel- 90° elbow-Short Pilot 5/16
5K1A-8-8 90° Elbow Male Tube-O-Swivel- 90° elbow-Short Pilot 13/38
5R1A-10-10 45° Elbow Male Tube-O-Swivel- 45° elbow-Short Pilot 1/2
5R1A-6-6 45° Elbow Male Tube-O-Swivel- 45° elbow-Short Pilot 5/16
5S1A-10-10 Straight Female Tube-O-Swivel-Short Pilot 1/2
5S1A-10-12 Straight Female Tube-O-Swivel-Short Pilot 5/8
5S1A-10-12-PT Straight Female Tube-O-Swivel-Short Pilot w/ low pressure charge port 5/8
5S1A-10-16-PT Straight Female Tube-O-Swivel-Short Pilot w/ low pressure charge port 7/8
5S1A-12-16 Straight Female Tube-O-Swivel-Short Pilot 7/8
5S1A-6-6 Straight Female Tube-O-Swivel-Short Pilot 5/16
5S1A-6-6-PB Straight Female Tube-O-Swivel-Short Pilot w/ high pressure charge port 5/16
5S1A-8-8 Straight Female Tube-O-Swivel-Short Pilot 13/32
5S1A-8-8-PB Straight Female Tube-O-Swivel-Short Pilot w/ high pressure charge port 13/32
5T1A-10-10 90° Elbow Female Tube-O-Swivel- 90° Elbow-Short Pilot 1/2
5T1A-10-16-PT 90° Elbow Female Tube-O-Swivel- 90° Elbow-Short Pilot w/ low pressure charge port 7/8
5T1A-12-16 90° Elbow Female Tube-O-Swivel- 90° Elbow-Short Pilot 7/8
5T1A-6-6 90° Elbow Female Tube-O-Swivel- 90° Elbow-Short Pilot 5/16
5T1A-6-8 90° Elbow Female Tube-O-Swivel- 90° Elbow-Short Pilot 13/32
5T1A-8-8 90° Elbow Female Tube-O-Swivel- 90° Elbow-Short Pilot 13/32
HU1A-10-10 Straight Splicer Fitting 1/2
HU1A-16-16 Straight Splicer Fitting 7/8
HU1A-16-16-PT Straight Splicer Fittings with Charge Port for R134a 7/8
HU1A-6-6 Straight Splicer Fitting 5/16
HU1A-8-8 Straight Splicer Fitting 13/32
S51A-10-12 Straight Male Tube-O-Swivel-Short Pilot 5/8
S51A-10-16 Straight Male Tube-O-Swivel-Short Pilot 7/8
S51A-6-6 Straight Male Tube-O-Swivel-Short Pilot 5/16
