Parker Quick Couplings
CNG Receptacle for Natural Gas Vehicle,Series FMS

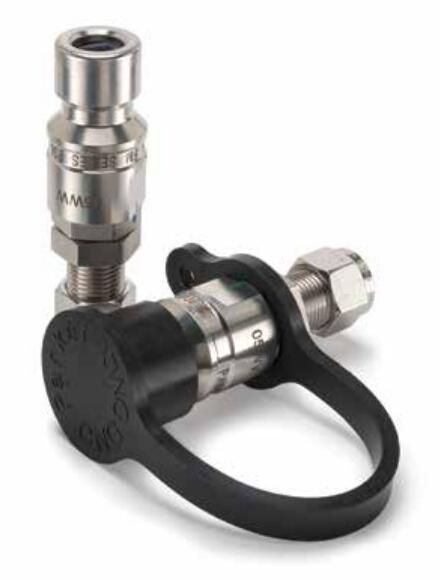

Parker's FMS Series CNG receptacle is designed for rigid mounting on a compressed natural gas vehicle. Receptacle can be employed in both fast-fill and timefill despensing application.The FM Series CNG receptacles conform to NGV1/ANSI standard.

Parker FMS Series receptacles are designed for rigid mounting on a compressed natural gas vehicle. Receptacles can be employed in both fast-fill and time-fill dispensing applications.The ANSI/NGV1 standard used by FMS Series receptacles allows vehicle fueling to be accomplished with all CNG nozzles conforming to the ANSI/NGV1 standard.

CNG Receptacle for Natural Gas Vehicle,Series FMS

Markets:
-Automotive

Features/Benefits:
-FM Series receptacles meet all dimensional and performance requirements of the NGV1/ANSI standard.
-Receptacle employ a differential pressure-actuated valve.
-Internal check valve provides unidrectional flow-natural gas will only flow from dispenser to vehicle.
-Extensive end configurations and mounting methods available.
-Seal is comprised of a special Nitrile compound formulated for compressed natural gas service.
-Materials
* Body : 316 Stainless Steel
* Adapter : 316 Stainless Steel
* Valving : 316 Stainless Steel
* Seal : Special CNG Nitrile Compound
* Dust Cap : Low temperature Nitrile Compound

Applications:
-Compressed Natural Gas vehicle application

Technical Specifications

CNG Receptacle for Natural Gas Vehicle,Series FMS 型号
