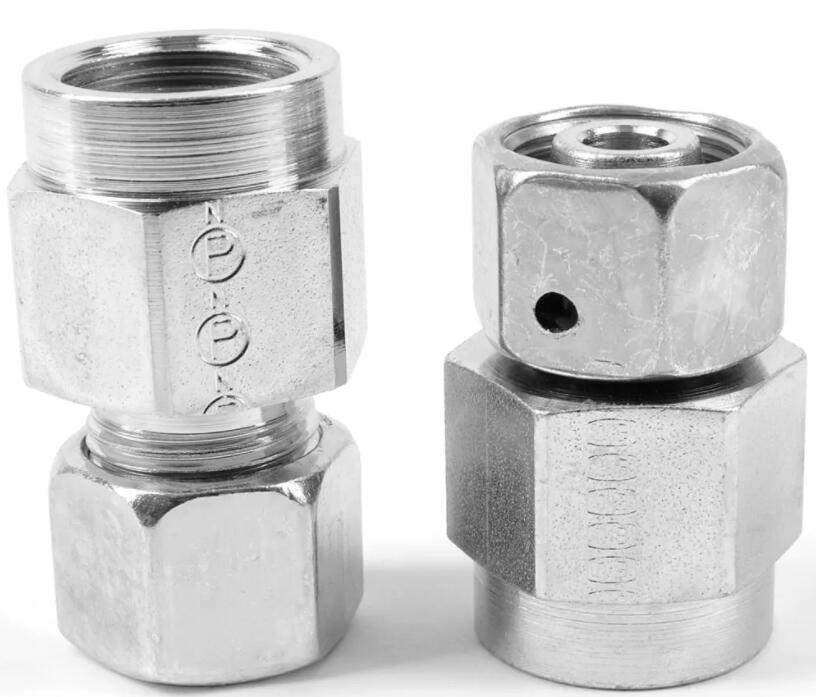

Ermeto DIN 压力表适配器 | #MAV04LLR71


Ermeto DIN 压力表适配器的功能是连接 2 根相同或不同直径的管道或软管。该系列配件有钢和不锈钢两种。Ermeto DIN 压力表适配器的功能是连接 2 根相同或不同直径的管道或软管。该系列接头采用钢和不锈钢材质，额定压力高达 800 bar (PN)。这些 MAV 和 MAVE 型 DIN 接头有钢和不锈钢版本，压力等级高达 630 bar (PN)。特点/优点：- 钢和不锈钢接头对腐蚀性介质和环境影响具有很高的耐腐蚀性。这些特性扩展了应用范围。- 压力表适配器的压力额定值高达 630 bar（S 系列）和 500 bar（L 系列）。这些特点扩大了应用范围。

市场：
- 汽车
- 国防
- 能源
- 环境
- 工业
- 基础设施
- 机床
- 物料搬运
- 移动
- 石油和天然气
- 发电
- 工艺
- 运输
- 水

应用：
- 适用于一般液压应用。







技术规格：

  • 产品序列： Very light
  • 连接 1 类型： 24° cone end
  • 连接 1 管道外径： 04 mm
  • 连接 2 类型： Female BSPP thread
  • 连接 2 尺寸： G 1/4
  • 结构材料： Stainless Steel
  • 可选配件： Pre-assembled with nut and EO-DPR cutting ring
  • 形状： Pressure gauge connector





部件 产品序列 连接 1 类型 连接 1 管道外径 连接 2 类型 连接 2 尺寸 结构材料 可选配件
MAV04LLR71 Very light 24° cone end 04 mm Female BSPP thread G 1/4 Stainless Steel Pre-assembled with nut and EO-DPR cutting ring
MAV04LLROMD71 Very light 24° cone end 04 mm Female BSPP thread G 1/4 Stainless Steel Without nut and ring, but including all other components such as seals
MAV04LLROMDCF Very light 24° cone end 04 mm Female BSPP thread G 1/4 Steel Without nut and ring, but including all other components such as seals
MAV04ZLLR71 Very light 24° cone end 04 mm Female BSPP thread G 1/4 Stainless Steel Pre-assembled with EO-2 functional nut
MAV04ZLLRCF Very light 24° cone end 04 mm Female BSPP thread G 1/4 Steel Pre-assembled with EO-2 functional nut
MAV06LR1/2CF Light 24° cone end 06 mm Female BSPP thread G 1/2 Steel Pre-assembled with nut and EO-PSR cutting ring
MAV06LR1/2MS Light 24° cone end 06 mm Female BSPP thread G 1/2 Brass Pre-assembled with nut and EO-D cutting ring
MAV06LRCFX Light 24° cone end 06 mm Female BSPP thread G 1/2 Steel Basic fitting body without any nut, ring, seal or other component
MAV06LRMS Light 24° cone end 06 mm Female BSPP thread G 1/2 Brass Pre-assembled with nut and EO-D cutting ring
MAV06LROMD71 Light 24° cone end 06 mm Female BSPP thread G 1/4 Stainless Steel Without nut and ring, but including all other components such as seals
MAV06SR1/4CF Heavy 24° cone end 06 mm Female BSPP thread G 1/4 Steel Pre-assembled with nut and EO-PSR cutting ring
MAV06SR1/4OMDCF Heavy 24° cone end 06 mm Female BSPP thread G 1/4 Steel Without nut and ring, but including all other components such as seals
MAV06SR3/8CFX Heavy 24° cone end 06 mm Female BSPP thread G 3/8 Steel Basic fitting body without any nut, ring, seal or other component
MAV06SR71 Heavy 24° cone end 06 mm Female BSPP thread G 1/2 Stainless Steel Pre-assembled with nut and EO-DPR cutting ring
MAV06SRMS Heavy 24° cone end 06 mm Female BSPP thread G 1/2 Brass Pre-assembled with nut and EO-D cutting ring
MAV06SROMD71 Heavy 24° cone end 06 mm Female BSPP thread G 1/2 Stainless Steel Without nut and ring, but including all other components such as seals
MAV06SROMDCF Heavy 24° cone end 06 mm Female BSPP thread G 1/2 Steel Without nut and ring, but including all other components such as seals
MAV06ZSRCF Heavy 24° cone end 06 mm Female BSPP thread G 1/2 Steel Pre-assembled with EO-2 functional nut
MAV08LR1/271X Light 24° cone end 08 mm Female BSPP thread G 1/2 Stainless Steel Basic fitting body without any nut, ring, seal or other component
MAV08LR71X Light 24° cone end 08 mm Female BSPP thread G 1/4 Stainless Steel Basic fitting body without any nut, ring, seal or other component
MAV08LRCFX Light 24° cone end 08 mm Female BSPP thread G 1/4 Steel Basic fitting body without any nut, ring, seal or other component
MAV08LRMS Light 24° cone end 08 mm Female BSPP thread G 1/4 Brass Pre-assembled with nut and EO-D cutting ring
MAV08LROMD71 Light 24° cone end 08 mm Female BSPP thread G 1/4 Stainless Steel Without nut and ring, but including all other components such as seals
MAV08SR1/4CF Heavy 24° cone end 08 mm Female BSPP thread G 1/4 Steel Pre-assembled with nut and EO-PSR cutting ring
MAV08SR1/4OMDCF Heavy 24° cone end 08 mm Female BSPP thread G 1/4 Steel Without nut and ring, but including all other components such as seals
MAV08SR71 Heavy 24° cone end 08 mm Female BSPP thread G 1/2 Stainless Steel Pre-assembled with nut and EO-DPR cutting ring
MAV08SR71X Heavy 24° cone end 08 mm Female BSPP thread G 1/2 Stainless Steel Basic fitting body without any nut, ring, seal or other component
MAV08SRCFX Heavy 24° cone end 08 mm Female BSPP thread G 1/2 Steel Basic fitting body without any nut, ring, seal or other component
MAV08SROMD71 Heavy 24° cone end 08 mm Female BSPP thread G 1/2 Stainless Steel Without nut and ring, but including all other components such as seals
MAV08ZLR71 Light 24° cone end 08 mm Female BSPP thread G 1/4 Stainless Steel Pre-assembled with EO-2 functional nut
MAV08ZSR71 Heavy 24° cone end 08 mm Female BSPP thread G 1/2 Stainless Steel Pre-assembled with EO-2 functional nut
MAV08ZSRCF Heavy 24° cone end 08 mm Female BSPP thread G 1/2 Steel Pre-assembled with EO-2 functional nut
MAV10LR71X Light 24° cone end 10 mm Female BSPP thread G 1/4 Stainless Steel Basic fitting body without any nut, ring, seal or other component
MAV10LRCFX Light 24° cone end 10 mm Female BSPP thread G 1/4 Steel Basic fitting body without any nut, ring, seal or other component
MAV10LROMD71 Light 24° cone end 10 mm Female BSPP thread G 1/4 Stainless Steel Without nut and ring, but including all other components such as seals
MAV10SR1/4CF Heavy 24° cone end 10 mm Female BSPP thread G 1/4 Steel Pre-assembled with nut and EO-PSR cutting ring
MAV10SR1/4OMDCF Heavy 24° cone end 10 mm Female BSPP thread G 1/4 Steel Without nut and ring, but including all other components such as seals
MAV10SR71 Heavy 24° cone end 10 mm Female BSPP thread G 1/2 Stainless Steel Pre-assembled with nut and EO-DPR cutting ring
MAV10SRMS Heavy 24° cone end 10 mm Female BSPP thread G 1/2 Brass Pre-assembled with nut and EO-D cutting ring
MAV10SROMD71 Heavy 24° cone end 10 mm Female BSPP thread G 1/2 Stainless Steel Without nut and ring, but including all other components such as seals
MAV10SROMDCF Heavy 24° cone end 10 mm Female BSPP thread G 1/2 Steel Without nut and ring, but including all other components such as seals
MAV12LR1/271 Light 24° cone end 12 mm Female BSPP thread G 1/2 Stainless Steel Pre-assembled with nut and EO-DPR cutting ring
MAV12LR1/2CF Light 24° cone end 12 mm Female BSPP thread G 1/2 Steel Pre-assembled with nut and EO-PSR cutting ring
MAV12LR1/2OMD71 Light 24° cone end 12 mm Female BSPP thread G 1/2 Stainless Steel Without nut and ring, but including all other components such as seals
MAV12LR1/2OMDCF Light 24° cone end 12 mm Female BSPP thread G 1/2 Steel Without nut and ring, but including all other components such as seals
MAV12LR71X Light 24° cone end 12 mm Female BSPP thread G 1/4 Stainless Steel Basic fitting body without any nut, ring, seal or other component
MAV12LRCFX Light 24° cone end 12 mm Female BSPP thread G 1/4 Steel Basic fitting body without any nut, ring, seal or other component
MAV12LRMS Light 24° cone end 12 mm Female BSPP thread G 1/4 Brass Pre-assembled with nut and EO-D cutting ring
MAV12LROMD71 Light 24° cone end 12 mm Female BSPP thread G 1/4 Stainless Steel Without nut and ring, but including all other components such as seals
MAV12LROMDCF Light 24° cone end 12 mm Female BSPP thread G 1/4 Steel Without nut and ring, but including all other components such as seals
MAV12SR1/471 Heavy 24° cone end 12 mm Female BSPP thread G 1/4 Stainless Steel Pre-assembled with nut and EO-DPR cutting ring
MAV12SR1/4CF Heavy 24° cone end 12 mm Female BSPP thread G 1/4 Steel Pre-assembled with nut and EO-PSR cutting ring
MAV12SR1/4OMD71 Heavy 24° cone end 12 mm Female BSPP thread G 1/4 Stainless Steel Without nut and ring, but including all other components such as seals
MAV12SR1/4OMDCF Heavy 24° cone end 12 mm Female BSPP thread G 1/4 Steel Without nut and ring, but including all other components such as seals
MAV12SRCFX Heavy 24° cone end 12 mm Female BSPP thread G 3/8 Steel Basic fitting body without any nut, ring, seal or other component
MAV12SRMS Heavy 24° cone end 12 mm Female BSPP thread G 3/8 Brass Pre-assembled with nut and EO-D cutting ring
MAV12SROMD71 Heavy 24° cone end 12 mm Female BSPP thread G 1/2 Stainless Steel Without nut and ring, but including all other components such as seals
MAV12SROMDCF Heavy 24° cone end 12 mm Female BSPP thread G 1/2 Steel Without nut and ring, but including all other components such as seals
MAV12ZLR71 Light 24° cone end 12 mm Female BSPP thread G 1/4 Stainless Steel Pre-assembled with EO-2 functional nut
MAV12ZSR71 Heavy 24° cone end 12 mm Female BSPP thread G 1/2 Stainless Steel Pre-assembled with EO-2 functional nut
MAV15LR1/2CF Light 24° cone end 15 mm Female BSPP thread G 1/2 Steel Pre-assembled with nut and EO-PSR cutting ring
MAV16SRCFX Heavy 24° cone end 16 mm Female BSPP thread G 1/2 Steel Basic fitting body without any nut, ring, seal or other component
MAVE06LR71 Light 24° DKO swivel 06 mm Female BSPP thread G 1/4 Stainless Steel n/a
MAVE06SR1/471 Heavy 24° DKO swivel 06 mm Female BSPP thread G 1/4 Stainless Steel n/a
MAVE06SR71 Heavy 24° DKO swivel 06 mm Female BSPP thread G 1/2 Stainless Steel n/a
MAVE08LR1/2CF Light 24° DKO swivel 08 mm Female BSPP thread G 1/2 Steel n/a
MAVE08SR71 Heavy 24° DKO swivel 08 mm Female BSPP thread G 1/2 Stainless Steel n/a
MAVE10SR1/471 Heavy 24° DKO swivel 10 mm Female BSPP thread G 1/4 Stainless Steel n/a
MAVE10SR71 Heavy 24° DKO swivel 10 mm Female BSPP thread G 1/2 Stainless Steel n/a
MAVE12LR1/271 Light 24° DKO swivel 12 mm Female BSPP thread G 1/2 Stainless Steel n/a
MAVE12LR1/2CF Light 24° DKO swivel 12 mm Female BSPP thread G 1/2 Steel n/a
MAVE12LR3/8CF Light 24° DKO swivel 12 mm Female BSPP thread G 3/8 Steel n/a
MAVE15LR1/271 Light 24° DKO swivel 15 mm Female BSPP thread G 1/2 Stainless Steel n/a
MAVE15LR1/2CF Light 24° DKO swivel 15 mm Female BSPP thread G 1/2 Steel n/a
MAVE15LRCF Light 24° DKO swivel 15 mm Female BSPP thread G 1/2 Steel n/a
MAVE16SRCF Heavy 24° DKO swivel 16 mm Female BSPP thread G 1/2 Steel n/a
MAVE18LR1/2CF Light 24° DKO swivel 18 mm Female BSPP thread G 1/2 Steel n/a
MAVE18LR1/471 Light 24° DKO swivel 18 mm Female BSPP thread G 1/4 Stainless Steel n/a
MAVE18LR1/4CF Light 24° DKO swivel 18 mm Female BSPP thread G 1/4 Steel n/a
MAVE20SR1/471 Heavy 24° DKO swivel 20 mm Female BSPP thread G 1/4 Stainless Steel n/a
