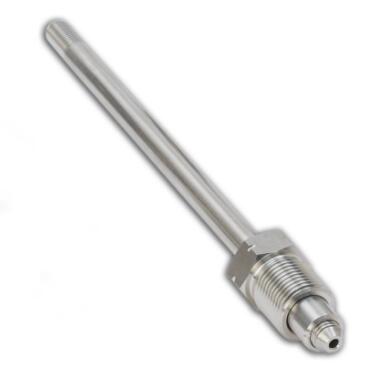

High Pressure Nipples

High pressure nipples are designed to be used with Polyflex fittings.





High pressure nipples are designed to be used with Polyflex fittings.

Markets:
- Hydraulics
- Industrial
- Oil & Gas





Technical Specifications

Tube Outside Diameter: 1/4, 3/8, 9/16, 3/4, 1 inch
Shape: Straight
Application: Oilfield, Marine
Connection Type: Field-Attachable
Maximum Operating Pressure: 4140 bar, 414 MPa, 60,000 psi
Length: 2-3/4, 3, 4, 6, 8, 10, 12
Materials of Construction: Stainless Steel



High Pressure Nipples 型号

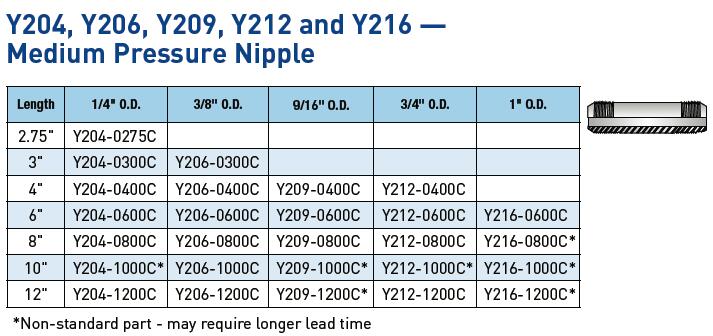

Part Maximum Working Pressure (psi) Tube O.D. (inch) Length
Y204-0275C 20000 1/4 2-3/4
Y204-0300C 20000 1/4 3
Y204-0400C 20000 1/4 4
Y204-0600C 20000 1/4 6
Y204-0800C 20000 1/4 8
Y204-1000C 20000 1/4 10
Y204-1200C 20000 1/4 12
Y206-0300C 20000 3/8 3
Y206-0400C 20000 3/8 4
Y206-0600C 20000 3/8 6
Y206-0800C 20000 3/8 8
Y206-1000C 20000 3/8 10
Y206-1200C 20000 3/8 12
Y209-0400C 20000 9/16 4
Y209-0600C 20000 9/16 6
Y209-0800C 20000 9/16 8
Y209-1000C 20000 9/16 10
Y209-1200C 20000 9/16 12
Y212-0400C 20000 3/4 4
Y212-0600C 20000 3/4 6
Y212-0800C 20000 3/4 8
Y212-1000C 20000 3/4 10
Y212-1200C 20000 3/4 12
Y216-0600C 20000 1 6
Y216-0800C 20000 1 8
Y216-1000C 20000 1 10
Y216-1200C 20000 1 12

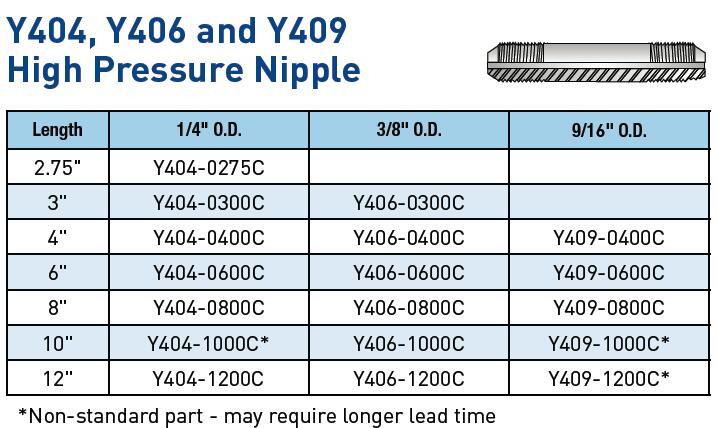

Y404-0275C 60000 1/4 2-3/4
Y404-0300C 60000 1/4 3
Y404-0400C 60000 1/4 4
Y404-0600C 60000 1/4 6
Y404-0800C 60000 1/4 8
Y404-1000C 60000 1/4 10
Y404-1200C 60000 1/4 12
Y406-0300C 60000 3/8 3
Y406-0400C 60000 3/8 4
Y406-0600C 60000 3/8 6
Y406-0800C 60000 3/8 8
Y406-1000C 60000 3/8 10
Y406-1200C 60000 3/8 12
Y409-0400C 60000 9/16 4
Y409-0600C 60000 9/16 6
Y409-0800C 60000 9/16 8
Y409-1000C 60000 9/16 10
Y409-1200C 60000 9/16 12
