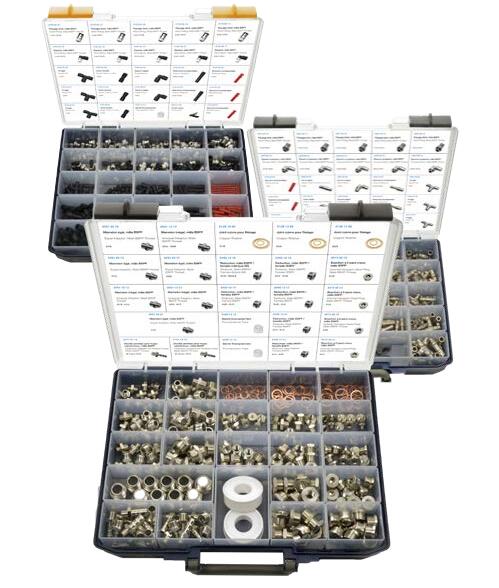

Maintenance Kit for push-in fittings - BSPP & BSPT threads

The essential tool to rapidly carry out the main maintenance operations and reduce production interruptions





Parker Legris provides 5 Maintenance kits, ready to use, to make easier and quicker the maintenance operations thanks to gather all most used part numbers of push-in fittings or accessories in one storage case.



Maintenance Kit for push-in fittings - BSPP & BSPT threads



LF 3000 Maintenance Kit, BSPP Threads
- Resistant up to +80°C at 20 bar
- BSPP products
- A selection of 24 references covering the most-used products
- Products available in the most common diameters: 4 mm, 6 mm and 8 mm
- A kit contains more than 300 products and then can be completed according to your needs.

LF 3000 Maintenance Kit, BSPT Threads
- Resistant up to +80°C at 20 bar
- BSPT products
- A selection of 24 references covering the most-used products
- Products available in the most common diameters: 4 mm, 6 mm and 8 mm
- A kit contains more than 300 products and then can be completed according to your needs.

LF 3600 Maintenance Kit, BSPP Threads
- Resistant up to +150°C at 30 bar
- BSPP products
- Excellent mechanical performance
- Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
- Parallel thread - BSPP
- A selection of 232 references covering the most-used products

Maintenance Kit - Accessories for push-in fittings, BSPT Threads
- Robust design
- Suitable for low and high voltage depending on the model
- Forged shapes for mechanical strength
- Taper thread – BSPT
- A selection of 216 references covering the most-used products

Maintenance Kit - Accessories for push-in fittings, BSPP Threads
- Robust design
- Suitable for low and high voltage depending on the model
- Forged shapes for mechanical strength
- Taper thread – BSPP
- A selection of 250 references covering the most-used products

Markets:
- Factory Automation
- Vehicule Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery

Applications:
- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vaccum Applications

Technologies:
- Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors
- Swivel Fittings

Technical Characteristics:
- Fluids: Compressed Air, Other Industrial fluids: please consult us
- Materials: Technical polymer, nickel-plated brass, NBR, FKM (LF3600) , FDA nickel plated brass (LF3600)
- Pressure: Vacuum to 20 bar (30 bars for LF3600 and 60 bar for Accessories)
- Temperature: -20°C to +80°C (+150°C for LF 3600)
- ? Metric: 4mm to 8 mm
- Thread size: M5, 1/8" to 1/2"

Regulations:
- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- DI: 97/23/EC (PED)
- DI : 2002/95/EC (RoHS), 2011/65/EC
- DI : 1907/2006 (REACH)
- FDA : 21CFR (Material Food contac for LF3600)



Technical Specifications

Body Material: Technical Polymer / Nickel Plated Brass, FDA Chemical Nickel Plated Brass, Nickel Plated Brass
O-Ring Material: NBR or FKM
Gripping Ring Material: STAINLESS STEEL, Collet : FDA nickel plated Brass, NA
Thread Sealant Material: PTFE
Maximum Operating Pressure: from 20 to 60
Minimum Operating Temperature: from -20 to -10
Minimum Operating Pressure: from 80 to 150
Vacuum Pressure Rating: 755
Quantity per Box: 216 to 300
Application: Robotics, Automotive Process, Pneumatics, Semi-Conductors, Textile, Packaging, Vacuum, Food Process, Coffee Machines, In-Plant Automotive, Medical Equipment, Printing, Misting, Welding Robots, Packaging, Robotics, Textile, Pneumatics, Automotive Process, Food Process
Media: Compressed Air, Other fluids: please consult us, Compressed air, grease, lubricant, water?, Many fluids
Specifications Met: ISO 14743, DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, DI : 1907/2006 (REACH), Industrial - ISO 14743: pneumatic transmissions, push-in fittings for thermoplastic tubing, DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, RG: 1907/2006 (REACH), DI: 94/9/EC (ATEX ), UL94 V-0: please consult us -- Food - RG: 21CFR (FDA), RG: 1935/2004/EC (minimum fl ow 0.02 l/h), USDA NSF H1: grease, ASTM B733-04: autocatalytic (electroless) nickel-phosphorus coatings, NA
Connection Tube Outside Diameter: from 4 to 8
Connection Type: BSPP or BSPT



Maintenance Kit for push-in fittings - BSPP & BSPT threads 型号

Part Shape Connection 1 Thread Size
0950 00 00 02 Accessories BSPP Maintenance Kit from M5, G1/8 to G1/2
0950 00 00 03 Accessories BSPT Maintenance Kit from R1/8 to R1/2
3150 00 01 57 LF 3000 BSPP Maintenance Kit from M5, G1/8 to G1/4
3150 00 01 58 LF 3000 BSPT Maintenance Kit from R1/8 to R1/4
3650 00 00 22 LF 3600 BSPP Maintenance Kit from G1/8 to G1/4
