Marine Hose Fittings – MS Series

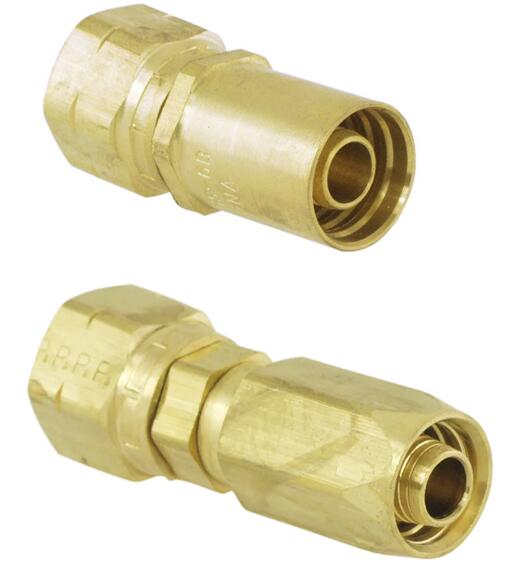

MS series are available in both permanent crimp and field attachable brass constructions for corrosion resistance in marine steering applications.
Parker MS series brass hose fittings, designed for use in hydraulic marine steering applications, are available in both permanent crimp and field attachable constructions for corrosion resistance in fresh water and salt water environments. They are qualified for use with Parker MSH (Marine Steering Hose) and available in both 5/16” (-5) and 3/8” (-6) sizes. When connected to the commonly used brass adapters, galvanic corrosion is also minimized with the brass MS series hose fittings.
Marine Hose Fittings – MS Series
Markets:
- Marine
Features/Benefits:
- Parkalign? dies
Applications:
- Hydraulic marine steering systems
- Outboard motors
Technical Specifications
| Port Size: |
0.375 inch |
| Application: |
Marine |
| Connection Type: |
Crimped, Field-Attachable, 45° Flare, Specialty |
| Hose Inside Diameter: |
5/16, 3/8 inch, 8, 10 mm |
| Materials of Construction: |
Brass, Steel |
| Connection Thread Size: |
5/8-18, 9/16-24 inch |
| Shape: |
Straight |
| Length: |
Varies |
| Product Style: |
Crimp and Field Attachable |
Marine Hose Fittings – MS Series 型号
| Part |
Port Connection (inch) |
Hose I.D. (inch) |
Style |
| 108MS-6-5B |
0.375 |
0.3125 |
Crimp, Female SAE 45° - Swivel - Straight |
| 108MS-6-6B |
0.375 |
0.375 |
Crimp, Female SAE 45° - Swivel - Straight |
| 134MS-6-5B |
0.375 |
0.3125 |
Male Standpipe - Rigid - Straight (Inch Size Tube O.D.) |
| 134MS-6-6B |
0.375 |
0.375 |
Male Standpipe - Rigid - Straight (Inch Size Tube O.D.) |
| 1TFMS-6-5B |
0.375 |
0.3125 |
Crimp, Marine Tube |
| 208MS-6-5B |
0.375 |
0.3125 |
Field Attachable, Female SAE 45° - Swivel - Straight |
| 208MS-6-6B |
0.375 |
0.375 |
Field Attachable, Female SAE 45° - Swivel - Straight |
| 2TFMS-6-5B |
0.375 |
0.3125 |
F.A., Marine Tube |
|
