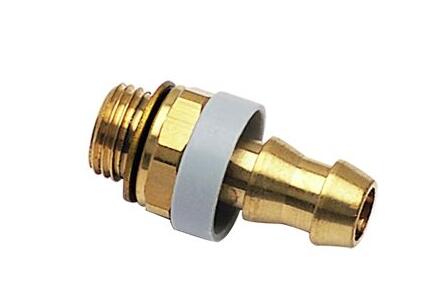

Quick-Acting Barbed Fitting With Brass Male BSPP Thread

Brass fittings for quick connection of self-fastening hose to a male port.Available in 1/8" to 3/4" IDThis range of fittings is designed to meet the requirements of the automotive and robotics industries - CNOMO manufacturing quality.





This range of fittings is designed to meet the requirements of the automotive and robotics industries, provides optimum CNOMO manufacturing quality, simple installation, reliable operation and a long service life.

Features/Benefits:

- Perfect for Self-Fastening NBR Hose

- Quick and simple to install
- Compatible with the Parker Legris range of brass compression fittings
- Mechanical properties proven for use in industrial robotic installations
- Spark-resistant

- Ergonomic and Time-Saving

- Fitting does not require lubrication or clamping, reducing assembly time
- Visual stop confirms installation is correct and improves operating safety
- Removal by cutting the tube
- The fitting can be re-used if necessary



Quick-Acting Barbed Fitting With Brass Male BSPP Thread



Markets:

- Packaging
- Miscellaneous Manufacturing
- Vehicle Assembly Facilities
- Machine Tools

Applications:

- Pneumatic Machinery Equipment at Medium and High Pressure
- Lubrication Systems
- Cooling Systems
- Welding Robots
- Suitable for Vacuum Applications

Technologies:

Brass fittings for a quick connection of self-fastening hose to a female port.

Technical Characteristics:

- Fluids: Coolants, compressed air
- Materials: brass, engineering polymer, silicone free
- Pressure: 0 to 16 bar
- Temperature:
0°C to +100°C (water)
-20°C to 70°C (air)

Regulations:

- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 97/23/EC (PED)
- RG: 1907/2006 (REACH)
- CNOMO: E07.21.115N



Technical Specifications

Body Material: BRASS
Maximum Operating Pressure: 16 bar
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: 100 °C
Quantity per Box: 10, 5
Weight: 0,01 to 0,128 kg
Industry Application: Pneumatics, Cooling, Automotive Process, Lubrication, Fluid Transmission, Packaging, Industrial Machinery
Media: Coolants, compressed air
Specifications Met: Industrial: DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 97/23/EC (PED), RG: 1907/2006 (REACH), CNOMO: E07.21.115N
Shape: Self-fastening barb connector for brass compression fitting
Product Type: Self-Fastening Barb Connectors for NBR Hose



Quick-Acting Barbed Fitting With Brass Male BSPP Thread 型号

Part Connection Thread Size Tube Inside Diameter Tube Outside Diameter
0133 56 10 39 G1/8 6,3 mm 13 mm
0133 56 13 39 G1/4 6,3 mm 13 mm
0133 60 13 39 G1/4 9,5 mm 16 mm
0133 60 17 39 G3/8 9,5 mm 16 mm
0133 62 17 39 G3/8 12,7 mm 19 mm
0133 62 21 39 G1/2 12,7 mm 19 mm
0133 66 21 39 G1/2 15,9 mm 23 mm
0133 66 27 39 G3/4 15,9 mm 23 mm
0133 69 27 39 G3/4 19,1 mm 27 mm
