Parker 快速接头和附件 Parker Quick Couplings and Accessories Parker Quick Couplings
ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Couplers

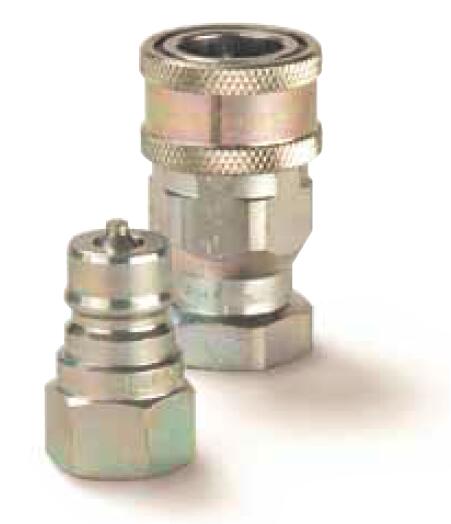

PARKER 6600 Series Hydraulic Quick Connect Coupling Quick Couplings ISO 7241 Series A

Parker派克的6600系列具有双关断提升阀，并且可以与其他符合ISO 7241系列A的快速断开阀互换。这些钢制连接器和油嘴具有各种尺寸，可用于压力范围高达5000 psi的应用。最高5000 psi的6600系列油嘴（液压），与ISO 7241系列A，6600系列快速连接。 Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi. Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection. 6600 Series Couplers (hydraulic) up to 5000 psi, connect with ISO 7241 series A, 6600 Series Nipples.

ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Couplers

技术特性：
- 尺寸：1/4“ – 1”
- 材料：钢
- 端口端：NPTF母头，ORB母头
- 密封选项：丁腈，EPR，碳氟化合物，氯丁橡胶

市场：
- 建筑
- 移动设备
- 农业

功能/优点：
- 与其他符合ISO 7241系列A的制造商的快速接头可在全球互换
- 钢制奶嘴主体经过硬化处理，经久耐用

应用：
- 液压油传输
- 卡车挂车连接
- 移动应用
- 附件

Technical Characteristics:
- Sizes: 1/4” – 1”
- Materials: Steel
- Port Ends: Female NPTF, Female ORB
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- Other Coupler options include: Sleeve Lock

Markets:
- Construction
- Mobile equipment
- Agriculture

Features/Benefits:
- Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
- Steel coupler sleeve is hardened for durability
- Optional sleeve lock helps to prevent accidental disconnection

Applications:
- Hydraulic fluid transfer
- Truck trailer connections
- Mobile applications
- Attachments

Technical Specifications

ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Couplers 型号
