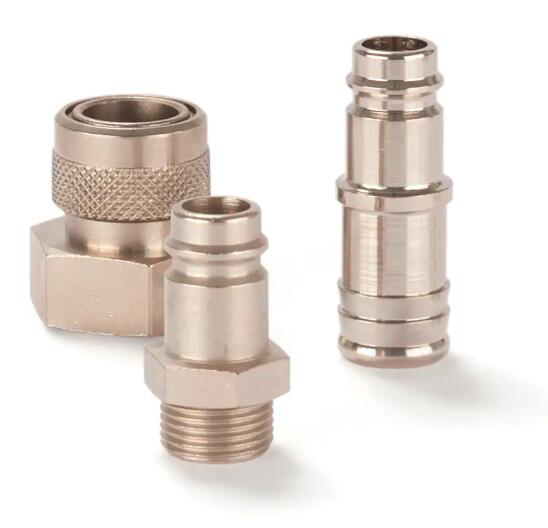

Quick Coupling with Parker own Profile, Series 41

Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass nickel plated.





Parker's Series 41 is a corrosion resistant brass coupling with no valve for applications with liquids in the pressure range up to 35 bar. Series 41 stands out for a high flow with minimal pressure drop.



Quick Coupling with Parker own Profile, Series 41



Markets:
- Machinery Construction

Features/Benefits:
- Corrosion resistant
- High flow with minimal pressure drop

Applications:
- High flow water applications



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 10 mm
Application: Pneumatic
Brand: Rectus
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Interchange Type: Rectus Profile
Maximum Operating Pressure: 500 psi, 35 bar
Maximum Operating Temperature: 212 °F, 100 °C
Media: Pneumatic Media
Valve Type: Poppet
Valve Included: No
Version: Straight-Through
Length: 31 to 48 mm
Hex Size: 24 to 32 mm
Outside Diameter: 15 to 25 mm
Flow Rate: 11 L/min
Materials of Construction: Brass
Seal Material: NBR



Quick Coupling with Parker own Profile, Series 41 型号

Part Type Connection Type Connection Thread Size (inch) Connection Thread Size (mm) Hose I.D.
41KFAW21MPN Coupling Male Thread - parallel 1/2 na na
41KFAW26MPN Coupling Male Thread - parallel 3/4 na na
41KFIM22MPN Coupling Female Thread - metric na 22x1 na
41KFIW21MPN Coupling Female Thread - parallel 1/2 na na
41KFIW26MPN Coupling Female Thread - parallel 3/4 na na
41KFTF10MPN Coupling Hose Barb na na 10
41KFTF13MPN Coupling Hose Barb na na 13
41KFTF16MPN Coupling Hose Barb na na 16
41KFTF19MPN Coupling Hose Barb na na 19
41SFAW21MXN Plug Male Thread - parallel 1/2 na na
41SFAW26MXN Plug Male Thread - parallel 3/4 na na
41SFIM22MXN Plug Female Thread - metric na 22x1 na
41SFIW21MXN Plug Female Thread - parallel 1/2 na na
41SFIW26MXN Plug Female Thread - parallel 3/4 na na
41SFTF08MXN Plug Hose Barb na na 8
41SFTF10MXN Plug Hose Barb na na 10
41SFTF13MXN Plug Hose Barb na na 13
41SFTF16MXN Plug Hose Barb na na 16
41SFTF19MXN Plug Hose Barb na na 19
