Quick Coupling for Medical Technology, Series MD

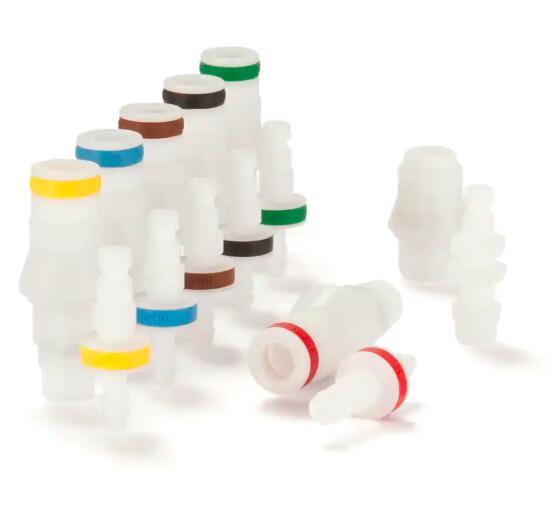

Parker MD Series Quick Coupling



Parker MD Series Quick Coupling is a coupling system for the medical field in POM of USP class VI with the world's most popular profile in this nominal diameter. Series MD stands out for its above average flow performance for liquid and gaseous media. This coupling system is developed for single-hand operation. The new type of plastic locking system with handy sleeve considerably expands the applications. The color and mechanical coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling. The coupling is also available straight-through (with no valve). Quick coupling system with nominal diameter 5 for medical applications up to 10 bar. Available made of thermoplastic (POM).



Parker MD Series Quick Coupling
Quick Coupling for Medical Technology, Series MD



Markets:
- Life Science
- Process

Features/Benefits:
- No mix-ups between media due to the color and mechanical coding of coupling and plug
- Single-hand operation for easy and fast connection

Applications:
- Surgical devices
- NIBP
- Patient monitoring
- Temperature & compression therapy



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 5 mm
Application: Medical Technology
Brand: Rectus
Fitting Connection Type: various
Interchange Type: Rectus Profile
Maximum Operating Pressure: 145 psi, 10 bar
Maximum Operating Temperature: 176 °F, 80 °C
Media: Chemical Fluids, Gases, Pneumatic Media, Water
Valve Type: Poppet
Valve Included: Yes or No acc. to the version
Length: 32 to 83,5 mm
Hex Size: 14 to 17 mm
Outside Diameter: 25,5 to 28 mm
Materials of Construction: POM, USP Class VI, white
Seal Material: EPDM USP Class VI
Flow Rate: 300 to 490 L/min



Quick Coupling for Medical Technology, Series MD 型号

Part Type Version Connection Type Connection Thread Size (inch) Hose I.D. Color
MD-M51-2FB Coupling Double Shut-Off Female Thread 1/8 na na
MD-M51-2FB-K0 Coupling Single Shut-Off Female Thread 1/8 na green - 0
MD-M51-2FB-K2 Coupling Single Shut-Off Female Thread 1/8 na black - 2
MD-M51-2FB-K3 Coupling Single Shut-Off Female Thread 1/8 na brown - 3
MD-M51-2FB-K5 Coupling Single Shut-Off Female Thread 1/8 na yellow - 5
MD-M51-2FB-K6 Coupling Single Shut-Off Female Thread 1/8 na blue - 6
MD-M51-2FB-K8 Coupling Single Shut-Off Female Thread 1/8 na red - 8
MD-M51-2MB Coupling Double Shut-Off Male Thread 1/8 na na
MD-M51-2MB-K0 Coupling Single Shut-Off Male Thread 1/8 na green - 0
MD-M51-2MB-K2 Coupling Single Shut-Off Male Thread 1/8 na black - 2
MD-M51-2MB-K3 Coupling Single Shut-Off Male Thread 1/8 na brown - 3
MD-M51-2MB-K5 Coupling Single Shut-Off Male Thread 1/8 na yellow - 5
MD-M51-2MB-K6 Coupling Single Shut-Off Male Thread 1/8 na blue - 6
MD-M51-2MB-K8 Coupling Single Shut-Off Male Thread 1/8 na red - 8
MD-M51-4FB Coupling Double Shut-Off Female Thread 1/4 na na
MD-M51-4FB-K0 Coupling Single Shut-Off Female Thread 1/4 na green - 0
MD-M51-4FB-K2 Coupling Single Shut-Off Female Thread 1/4 na black - 2
MD-M51-4FB-K3 Coupling Single Shut-Off Female Thread 1/4 na brown - 3
MD-M51-4FB-K5 Coupling Single Shut-Off Female Thread 1/4 na yellow - 5
MD-M51-4FB-K6 Coupling Single Shut-Off Female Thread 1/4 na blue - 6
MD-M51-4FB-K8 Coupling Single Shut-Off Female Thread 1/4 na red - 8
MD-M51-4MB Coupling Double Shut-Off Male Thread 1/4 na na
MD-M51-4MB-K0 Coupling Single Shut-Off Male Thread 1/4 na green - 0
MD-M51-4MB-K2 Coupling Single Shut-Off Male Thread 1/4 na black - 2
MD-M51-4MB-K3 Coupling Single Shut-Off Male Thread 1/4 na brown - 3
MD-M51-4MB-K5 Coupling Single Shut-Off Male Thread 1/4 na yellow - 5
MD-M51-4MB-K6 Coupling Single Shut-Off Male Thread 1/4 na blue - 6
MD-M51-4MB-K8 Coupling Single Shut-Off Male Thread 1/4 na red - 8
MD-M51-HM4HB Coupling Double Shut-Off Panel Mount with Hose Barb na 4 na
MD-M51-HM4HB-K0 Coupling Single Shut-Off Panel Mount with Hose Barb na 4 green - 0
MD-M51-HM4HB-K2 Coupling Single Shut-Off Panel Mount with Hose Barb na 4 black - 2
MD-M51-HM4HB-K3 Coupling Single Shut-Off Panel Mount with Hose Barb na 4 brown - 3
MD-M51-HM4HB-K5 Coupling Single Shut-Off Panel Mount with Hose Barb na 4 yellow - 5
MD-M51-HM4HB-K6 Coupling Single Shut-Off Panel Mount with Hose Barb na 4 blue - 6
MD-M51-HM4HB-K8 Coupling Single Shut-Off Panel Mount with Hose Barb na 4 red - 8
MD-M51-HM6CSP Coupling Double Shut-Off Panel Mount with Plastic Hose Connection na 4x6 na
MD-M51-HM6CSP-K0 Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na 4x6 green - 0
MD-M51-HM6CSP-K2 Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na 4x6 black - 2
MD-M51-HM6CSP-K3 Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na 4x6 brown - 3
MD-M51-HM6CSP-K5 Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na 4x6 yellow - 5
MD-M51-HM6CSP-K6 Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na 4x6 blue - 6
MD-M51-HM6CSP-K8 Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na 4x6 red - 8
MD-M51-HM6HB Coupling Double Shut-Off Panel Mount with Hose Barb na 6 na
MD-M51-HM6HB-K0 Coupling Single Shut-Off Panel Mount with Hose Barb na 6 green - 0
MD-M51-HM6HB-K2 Coupling Single Shut-Off Panel Mount with Hose Barb na 6 black - 2
MD-M51-HM6HB-K3 Coupling Single Shut-Off Panel Mount with Hose Barb na 6 brown - 3
MD-M51-HM6HB-K5 Coupling Single Shut-Off Panel Mount with Hose Barb na 6 yellow - 5
MD-M51-HM6HB-K6 Coupling Single Shut-Off Panel Mount with Hose Barb na 6 blue - 6
MD-M51-HM6HB-K8 Coupling Single Shut-Off Panel Mount with Hose Barb na 6 red - 8
MD-M51-HM8CSP Coupling Double Shut-Off Panel Mount with Plastic Hose Connection na 6x8 na
MD-M51-HM8CSP-K0 Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na 6x8 green - 0
MD-M51-HM8CSP-K2 Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na 6x8 black - 2
MD-M51-HM8CSP-K3 Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na 6x8 brown - 3
MD-M51-HM8CSP-K5 Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na 6x8 yellow - 5
MD-M51-HM8CSP-K6 Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na 6x8 blue - 6
MD-M51-HM8CSP-K8 Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na 6x8 red - 8
MD-M51-M4HB Coupling Double Shut-Off Hose Barb na 4 na
MD-M51-M4HB-K0 Coupling Single Shut-Off Hose Barb na 4 green - 0
MD-M51-M4HB-K2 Coupling Single Shut-Off Hose Barb na 4 black - 2
MD-M51-M4HB-K3 Coupling Single Shut-Off Hose Barb na 4 brown - 3
MD-M51-M4HB-K5 Coupling Single Shut-Off Hose Barb na 4 yellow - 5
MD-M51-M4HB-K6 Coupling Single Shut-Off Hose Barb na 4 blue - 6
MD-M51-M4HB-K8 Coupling Single Shut-Off Hose Barb na 4 red - 8
MD-M51-M6CSP Coupling Double Shut-Off with Plastic Hose Connection na 4x6 na
MD-M51-M6CSP-K0 Coupling Single Shut-Off with Plastic Hose Connection na 4x6 green - 0
MD-M51-M6CSP-K2 Coupling Single Shut-Off with Plastic Hose Connection na 4x6 black - 2
MD-M51-M6CSP-K3 Coupling Single Shut-Off with Plastic Hose Connection na 4x6 brown - 3
MD-M51-M6CSP-K5 Coupling Single Shut-Off with Plastic Hose Connection na 4x6 yellow - 5
MD-M51-M6CSP-K6 Coupling Single Shut-Off with Plastic Hose Connection na 4x6 blue - 6
MD-M51-M6CSP-K8 Coupling Single Shut-Off with Plastic Hose Connection na 4x6 red - 8
MD-M51-M6HB Coupling Double Shut-Off Hose Barb na 6 na
MD-M51-M6HB-K0 Coupling Single Shut-Off Hose Barb na 6 green - 0
MD-M51-M6HB-K2 Coupling Single Shut-Off Hose Barb na 6 black - 2
MD-M51-M6HB-K3 Coupling Single Shut-Off Hose Barb na 6 brown - 3
MD-M51-M6HB-K5 Coupling Single Shut-Off Hose Barb na 6 yellow - 5
MD-M51-M6HB-K6 Coupling Single Shut-Off Hose Barb na 6 blue - 6
MD-M51-M6HB-K8 Coupling Single Shut-Off Hose Barb na 6 red - 8
MD-M51-M8CSP Coupling Double Shut-Off with Plastic Hose Connection na 6x8 na
MD-M51-M8CSP-K0 Coupling Single Shut-Off with Plastic Hose Connection na 6x8 green - 0
MD-M51-M8CSP-K2 Coupling Single Shut-Off with Plastic Hose Connection na 6x8 black - 2
MD-M51-M8CSP-K3 Coupling Single Shut-Off with Plastic Hose Connection na 6x8 brown - 3
MD-M51-M8CSP-K5 Coupling Single Shut-Off with Plastic Hose Connection na 6x8 yellow - 5
MD-M51-M8CSP-K6 Coupling Single Shut-Off with Plastic Hose Connection na 6x8 blue - 6
MD-M51-M8CSP-K8 Coupling Single Shut-Off with Plastic Hose Connection na 6x8 red - 8
MD-M51-QM4HB Coupling Double Shut-Off Hose Barb, Flush Mount na 4 na
MD-M51-QM6CSP Coupling Double Shut-Off Plastic Hose Connection, Flush Mount na 4x6 na
MD-M51-QM6HB Coupling Double Shut-Off Hose Barb, Flush Mount na 6 na
MD-M51-QM8CSP Coupling Double Shut-Off Plastic Hose Connection, Flush Mount na 6x8 na
MD-M52-2FB Plug Double Shut-Off Female Thread 1/8 na na
MD-M52-2MB Plug Double Shut-Off Male Thread 1/8 na na
MD-M52-4FB Plug Double Shut-Off Female Thread 1/4 na na
MD-M52-4MB Plug Double Shut-Off Male Thread 1/4 na na
MD-M52-HM4HB Plug Double Shut-Off Panel Mount with Hose Barb na 4 na
MD-M52-HM6CSP Plug Double Shut-Off Panel Mount with Plastic Hose Connection na 4x6 na
MD-M52-HM6HB Plug Double Shut-Off Panel Mount with Hose Barb na 6 na
MD-M52-HM8CSP Plug Double Shut-Off Panel Mount with Plastic Hose Connection na 6x8 na
MD-M52-M4HB Plug Double Shut-Off Hose Barb na 4 na
MD-M52-M6CSP Plug Double Shut-Off with Plastic Hose Connection na 4x6 na
MD-M52-M6HB Plug Double Shut-Off Hose Barb na 6 na
MD-M52-M8CSP Plug Double Shut-Off with Plastic Hose Connection na 6x8 na
MD-M54-HM4HB Plug Single Shut-Off Panel Mount with Hose Barb na 4x6 na
MD-M54-HM6CSP Plug Single Shut-Off Panel Mount with Plastic Hose Connection na 4x6 na
MD-M54-HM6HB Plug Single Shut-Off Panel Mount with Hose Barb na 6x8 na
MD-M54-HM8CSP Plug Single Shut-Off Panel Mount with Plastic Hose Connection na 6x8 na
MD-M54-M10HB-K0 Plug Single Shut-Off Hose Barb na 10 green - 0
MD-M54-M10HB-K2 Plug Single Shut-Off Hose Barb na 10 black - 2
MD-M54-M10HB-K3 Plug Single Shut-Off Hose Barb na 10 brown - 3
MD-M54-M10HB-K5 Plug Single Shut-Off Hose Barb na 10 yellow - 5
MD-M54-M10HB-K6 Plug Single Shut-Off Hose Barb na 10 blue - 6
MD-M54-M10HB-K8 Plug Single Shut-Off Hose Barb na 10 red - 8
MD-M54-M4HB Plug Single Shut-Off Hose Barb na 4 na
MD-M54-M4HB-K0 Plug Single Shut-Off Hose Barb na 4 green - 0
MD-M54-M4HB-K2 Plug Single Shut-Off Hose Barb na 4 black - 2
MD-M54-M4HB-K3 Plug Single Shut-Off Hose Barb na 4 brown - 3
MD-M54-M4HB-K5 Plug Single Shut-Off Hose Barb na 4 yellow - 5
MD-M54-M4HB-K6 Plug Single Shut-Off Hose Barb na 4 blue - 6
MD-M54-M4HB-K8 Plug Single Shut-Off Hose Barb na 4 red - 8
MD-M54-M6HB Plug Single Shut-Off Hose Barb na 6 na
MD-M54-M6HB-K0 Plug Single Shut-Off Hose Barb na 6 green - 0
MD-M54-M6HB-K2 Plug Single Shut-Off Hose Barb na 6 black - 2
MD-M54-M6HB-K3 Plug Single Shut-Off Hose Barb na 6 brown - 3
MD-M54-M6HB-K5 Plug Single Shut-Off Hose Barb na 6 yellow - 5
MD-M54-M6HB-K6 Plug Single Shut-Off Hose Barb na 6 blue - 6
MD-M54-M6HB-K8 Plug Single Shut-Off Hose Barb na 6 red - 8
