Parker Industrial Brass Ball Valves
PARKER派克工业黄铜球阀
PARKER的黄铜球阀设计为以经济的价格提供多年的服务，并可在各种终端配置和选项。帕克的工业黄铜球阀设计为以经济的价格提供多年的服务。这些阀门专为商业和一般工业应用而制造，比轻型一次性阀门具有更高的性能。这些球阀用于完全打开或关闭位置。阀门节流可能导致过早密封失效和/或无法转动阀门手柄。Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.Parker's industrial brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications these valves offer increased performance over lightweight throwaway valves. These ball valves are intended for use in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
工业黄铜球阀 派克的黄铜球阀旨在以经济的价格提供多年的服务，并且具有各种最终配置和选件。派克的工业黄铜球阀旨在以经济的价格提供多年的服务。这些阀门是为商业和一般工业应用而制造的，与轻型一次性阀门相比，性能更高。这些球阀旨在用于完全打开或关闭位置。阀门的节流可能导致密封件过早失效和/或无法转动阀门手柄。

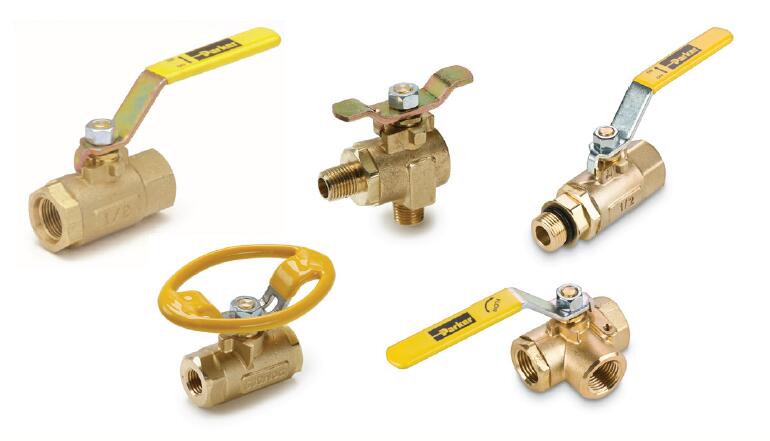

Parker's brass ball valves are available in a range of styles including:
- Female x Female
- Female x Male
- Panel Mount
- Female Straight Thread x Female Straight Thread
- Solder ends
- Female Straight Thread x Male Straight Thread
- 3 and 4 Way Diversion
- 90 Valves
- Beaded Hose Barb End
- 6 Port Valve
黄铜球阀的选件包括：
- 镀镍
- 通风
- 挂锁手柄
- 不锈钢球和阀杆
- 不锈钢手柄和螺母
- 三通手柄
- 椭圆形手柄
- 浅黄色乙烯基手柄盖
- 执行器套件
市场：
- 重型卡车
- 机动
- 农业
- 建筑
- 工业
特点/优点：
- 锻造本体，以增强强度
- 镀铬黄铜球
- PTFE阀座和密封
- 多种样式
- 四分之一转手柄可提供正向停止功能，实现完全关闭
应用：
- 汽油和柴油设备的燃油管线切断
- 航空服务管线
- 资本设备上的供水管线-
需要完全切断能力的工厂设计管道
Options for the brass ball valves include:
- Nickel Plating
- Venting
- Padlocking Handles
- Stainless Steel Ball & Stem
- Stainless Steel Handle & Nut
- Tee Handle
- Oval Handle
- Plain Yellow Vinyl Handle Cover
- Actuator Kit
市场:
- Heavy Duty Truck
- Mobile
- Agriculture
- Construction
- Industrial
性能特点:
- Forged Body for Added Strength
- Chrome Plated Brass Ball
- PTFE Seats and Seals
- Wide Range of Styles
- Quarter Turn Handle Provides Positive Stop Action for Full Shutoff
应用:
- Fuel Line Shutoffs for Gasoline and Diesel Equipment
- Air Service lines
- Water Service Lines on Capital Equipment
- Plant Design Plumbing Requiring Total Shutoff Capability
Custom configurations and sizes are available upon request. Contact us for additional information.
规格参数：
Minimum Operating Temperature: -50 to 0 °F, -45 to -17 °C
Maximum Operating Temperature: 250 to 350 °F, 121 to 176 °C
Maximum Operating Pressure: 10 to 41 bar
Connection Type: NPT, Straight Thread, Solder
Body Material: Brass
Ball Material: Chrome Plated Brass
Seat Material: PTFE
Related Documents
Communities, Blogs, and Industry Links
Parker Ball Valves: Made to the Highest Standards
Literature and Reference Materials
Ball Valve QRG
Brass, Composite and Thermoplastic Fittings and Valves - CAT. 3501E
Parker Ball Valves: Made to the Highest Standards
Quick Reference Guide - 3500-QRG
RACE--Ball valves
RACE--PB Bi-Flow CO2 Valves_uk
Product Demos & Tutorials
Parker Ball Valves: Made to the Highest Standards
Compliance, Certifications, & Safety
Certificate of Registration for Albion, IN facility
Certificate of Registration for Lakeview, MI facility
Certificate of Registration for Otsego, MI facility
Conflict Minerals Statement Parker Fluid System Connectors Division
FSC REACH Product Declaration
Management System Certificate for Otsego, MI
RoHS Product Declaration
Brass Composition
Certificate of Insurance
Safe Drinking Water Act
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
MV708-2 |
500 |
Male to Female |
In Line |
1/8 |
Male Pipe |
1/8 |
Female Pipe |
na |
na |
Chrome Plated Steel |
Non-Locking |
No |
MV708-4 |
500 |
Male to Female |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Chrome Plated Steel |
Non-Locking |
No |
MV709-2 |
500 |
Female to Female |
In Line |
1/8 |
Female Pipe |
1/8 |
Female Pipe |
na |
na |
Chrome Plated Steel |
Non-Locking |
No |
MV709-4 |
500 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Chrome Plated Steel |
Non-Locking |
No |
V500P-12 |
600 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-12-04 |
600 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V500P-12-16HB |
150 |
Female to Hose Barb |
In Line |
1 |
Hose Barb |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-12-21 |
600 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V500P-16 |
600 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-16-04 |
600 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V500P-20 |
600 |
Female to Female |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-24 |
600 |
Female to Female |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-32 |
600 |
Female to Female |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-4 |
600 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-4-04 |
600 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V500P-6 |
600 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-6-04 |
600 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V500P-8 |
600 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V500P-8-02 |
600 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Stainless Steel Handle |
Non-Locking |
No |
V500P-8-04 |
600 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V501P-12 |
600 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V501P-12-04 |
600 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V501P-12-21 |
600 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V501P-16 |
600 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V501P-16-04 |
600 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
V501P-16-21 |
600 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V501P-4 |
600 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V501P-4-04 |
600 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V501P-4-21 |
600 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V501P-6 |
600 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V501P-6-04 |
600 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V501P-6-21 |
600 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V501P-8 |
600 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V501P-8-04 |
600 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V501P-8-21 |
600 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V502P-12 |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V502P-12-04 |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V502P-12-21 |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V502P-12-ACT |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-12-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-16 |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V502P-16-04 |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V502P-16-21 |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V502P-16-ACT |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-16-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-4 |
600 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V502P-4-04 |
600 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V502P-4-21 |
600 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V502P-4-ACT |
150 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-4-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
V502P-6 |
600 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V502P-6-04 |
600 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V502P-6-21 |
600 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V502P-6-ACT |
150 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-6-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-8 |
600 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V502P-8-04 |
600 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V502P-8-08 |
600 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Unmarked Yellow Vinyl Handle Cover |
Non-Locking |
No |
V502P-8-21 |
600 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Oval |
Non-Locking |
No |
V502P-8-ACT |
150 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V502P-8-SUB |
150 |
Female to Female |
Panel Mount Sub Assembly |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
na |
Non-Locking |
No |
V506P-12 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
1 1/16-12 |
Female Straight Thread |
1 1/16-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-16 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
1 5/16-12 |
Female Straight Thread |
1 5/16-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-20 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
1 5/8-12 |
Female Straight Thread |
1 5/8-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-24 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
1 7/8-12 |
Female Straight Thread |
1 7/8-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-32 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
2 1/2-12 |
Female Straight Thread |
2 1/2-12 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-4 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
7/16-20 |
Female Straight Thread |
7/16-20 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-6 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
9/16-18 |
Female Straight Thread |
9/16-18 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V506P-6-04 |
600 |
Female to Female |
In Line |
9/16-18 |
Female Pipe |
9/16-18 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V506P-8 |
600 |
Female Straight Thread to Female Straight Thread |
In Line |
3/4-16 |
Female Straight Thread |
3/4-16 |
Female Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V509P-12 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
3/4 |
3/4 |
Steel Lever |
Non-Locking |
No |
V509P-16 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
1 |
1 |
Steel Lever |
Non-Locking |
No |
V509P-20 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
1 1/4 |
1 1/4 |
Steel Lever |
Non-Locking |
No |
V509P-24 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
1 1/2 |
1 1/2 |
Steel Lever |
Non-Locking |
No |
V509P-32 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
2 |
2 |
Steel Lever |
Non-Locking |
No |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
V509P-8 |
600 |
Solder to Solder |
In Line |
na |
Solder |
na |
Solder |
1/2 |
1/2 |
Steel Lever |
Non-Locking |
No |
V510P-10 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/8-14 |
Female Straight thread |
7/8-14 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V510P-10-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/8-14 |
Female Straight thread |
7/8-14 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
V510P-12 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 1/16-12 |
Female Straight thread |
1 1/16-12 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V510P-12-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 1/16-12 |
Female Straight thread |
1 1/16-12 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
V510P-12-21 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 1/16-12 |
Female Straight thread |
1 1/16-12 |
Male Straight Thread |
na |
na |
Steel Oval |
Non-Locking |
No |
V510P-16 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 5/16-12 |
Female Straight thread |
1 5/16-12 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V510P-16-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 5/16-12 |
Female Straight thread |
1 5/16-12 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
V510P-4 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/16-20 |
Female Straight thread |
7/16-20 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V510P-4-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/16-20 |
Female Straight thread |
7/16-20 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
V510P-4-21 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/16-20 |
Female Straight thread |
7/16-20 |
Male Straight Thread |
na |
na |
Steel Oval |
Non-Locking |
No |
V510P-6 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
9/16-18 |
Female Straight thread |
9/16-18 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V510P-6-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
9/16-18 |
Female Straight thread |
9/16-18 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
V510P-6-21 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
9/16-18 |
Female Straight thread |
9/16-18 |
Male Straight Thread |
na |
na |
Steel Oval |
Non-Locking |
No |
V510P-8 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
3/4-16 |
Female Straight thread |
3/4-16 |
Male Straight Thread |
na |
na |
Steel Lever |
Non-Locking |
No |
V510P-8-04 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
3/4-16 |
Female Straight thread |
3/4-16 |
Male Straight Thread |
na |
na |
Steel Tee |
Non-Locking |
No |
V510P-8-21 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
3/4-16 |
Female Straight thread |
3/4-16 |
Male Straight Thread |
na |
na |
Steel Oval |
Non-Locking |
No |
V520P-12 |
600 |
Female to Female Economy |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-12-04 |
600 |
Female to Female Economy |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V520P-16 |
600 |
Female to Female Economy |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-20 |
600 |
Female to Female Economy |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-24 |
600 |
Female to Female Economy |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-32 |
600 |
Female to Female Economy |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-4 |
600 |
Female to Female Economy |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-40 |
600 |
Female to Female Economy |
In Line |
2 1/2 |
Female Pipe |
2 1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
V520P-48 |
600 |
Female to Female Economy |
In Line |
3 |
Female Pipe |
3 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-6 |
600 |
Female to Female Economy |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V520P-8 |
600 |
Female to Female Economy |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V533P-12 |
400 |
Female to Female |
3-Way |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V533P-16 |
400 |
Female to Female |
3-Way |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V533P-4 |
400 |
Female to Female |
3-Way |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V533P-4-04 |
600 |
Female to Female to Female |
3-way |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Tee Handle |
Non-Locking |
No |
V533P-6 |
400 |
Female to Female |
3-Way |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V533P-8 |
400 |
Female to Female |
3-Way |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V540P-4 |
400 |
Female to Female |
4-Way |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V590P-16 |
250 |
Female to Male |
90 Valve |
1 |
Female Pipe |
1 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V590P-16-04 |
250 |
Female to Male |
90 Valve |
1 |
Female Pipe |
1 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V590P-4 |
250 |
Female to Male |
90 Valve |
1/4 |
Female Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V590P-4-04 |
250 |
Female to Male |
90 Valve |
1/4 |
Female Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V590P-6 |
250 |
Female to Male |
90 Valve |
3/8 |
Female Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V590P-6-04 |
250 |
Female to Male |
90 Valve |
3/8 |
Female Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V590P-8 |
250 |
Female to Male |
90 Valve |
1/2 |
Female Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V590P-8-04 |
250 |
Female to Male |
90 Valve |
1/2 |
Female Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V591P-4 |
250 |
Male to Male |
90 Valve |
1/4 |
Male Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V591P-4-04 |
250 |
Male to Male |
90 Valve |
1/4 |
Male Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V591P-6 |
250 |
Male to Male |
90 Valve |
3/8 |
Male Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V591P-6-04 |
250 |
Male to Male |
90 Valve |
3/8 |
Male Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V591P-8 |
250 |
Male to Male |
90 Valve |
1/2 |
Male Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
V591P-8-04 |
250 |
Male to Male |
90 Valve |
1/2 |
Male Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
V600P-8-6 |
150 |
Female to Female |
6 Port 3 position Handle |
1/2 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
V633P-8-6 |
150 |
Female to Female |
6 Port 2 position Handle |
1/2 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
No |
VP500P-12 |
600 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP500P-16 |
600 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP500P-20 |
600 |
Female to Female |
In Line |
1 1/4 |
Female Pipe |
1 1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP500P-24 |
600 |
Female to Female |
In Line |
1 1/2 |
Female Pipe |
1 1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP500P-32 |
600 |
Female to Female |
In Line |
2 |
Female Pipe |
2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP500P-4 |
600 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP500P-6 |
600 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP501P-12 |
600 |
Female to Male |
In Line |
3/4 |
Female Pipe |
3/4 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP501P-16 |
600 |
Female to Male |
In Line |
1 |
Female Pipe |
1 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP501P-4 |
600 |
Female to Male |
In Line |
1/4 |
Female Pipe |
1/4 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP501P-6 |
600 |
Female to Male |
In Line |
3/8 |
Female Pipe |
3/8 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP501P-8 |
600 |
Female to Male |
In Line |
1/2 |
Female Pipe |
1/2 |
Male Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP502P-12 |
600 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP502P-16 |
600 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP502P-4 |
600 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP502P-6 |
600 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP502P-8 |
600 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
No |
VP510P-10 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/8-14 |
Female Straight thread |
7/8-14 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
VP510P-12 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
1 1/16-12 |
Female Straight thread |
1 1/16-12 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
VP510P-4 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
7/16-20 |
Female Straight thread |
7/16-20 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
VP510P-6 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
9/16-18 |
Female Straight thread |
9/16-18 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
VP510P-8 |
600 |
Female Straight Thread to Male Straight Thread |
In Line |
3/4-16 |
Female Straight thread |
3/4-16 |
Male Straight Thread |
na |
na |
Steel Lever |
Padlock |
No |
VV500P-12 |
250 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV500P-16 |
250 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
VV500P-4 |
250 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV500P-6 |
250 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV500P-8 |
250 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV501P-12 |
250 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV501P-16 |
250 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV501P-4 |
250 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV501P-6 |
250 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV501P-8 |
250 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV502P-12 |
250 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV502P-16 |
250 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV502P-4 |
250 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV502P-6 |
250 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VV502P-8 |
250 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Non-Locking |
Yes |
VVP500P-12 |
250 |
Female to Female |
In Line |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP500P-16 |
250 |
Female to Female |
In Line |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP500P-4 |
250 |
Female to Female |
In Line |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP500P-6 |
250 |
Female to Female |
In Line |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP500P-8 |
250 |
Female to Female |
In Line |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP501P-12 |
250 |
Female to Male |
In Line |
3/4 |
Male Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP501P-16 |
250 |
Female to Male |
In Line |
1 |
Male Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP501P-4 |
250 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP501P-6 |
250 |
Female to Male |
In Line |
3/8 |
Male Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP501P-8 |
250 |
Female to Male |
In Line |
1/2 |
Male Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP502P-12 |
250 |
Female to Female |
Panel Mount |
3/4 |
Female Pipe |
3/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP502P-16 |
250 |
Female to Female |
Panel Mount |
1 |
Female Pipe |
1 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
Part |
Maximum Working Pressure (psi) |
Style |
Shape |
Connection 1 Thread Size (inch) |
Connection 1 Thread Style |
Connection 2 Thread Size (inch) |
Connection 2 Thread Style |
Connection 1 Solder O.D. (inch) |
Connection 2 Solder O.D. (inch) |
Handle |
Locking Mechanism |
Vented |
VVP502P-4 |
250 |
Female to Female |
Panel Mount |
1/4 |
Female Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP502P-6 |
250 |
Female to Female |
Panel Mount |
3/8 |
Female Pipe |
3/8 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
VVP502P-8 |
250 |
Female to Female |
Panel Mount |
1/2 |
Female Pipe |
1/2 |
Female Pipe |
na |
na |
Steel Lever |
Padlock |
Yes |
XV501PCHP-4 |
2000 |
Female to Male |
In Line |
1/4 |
Male Pipe |
1/4 |
Female Pipe |
na |
na |
Steel Tee |
Non-Locking |
No |
|
fcg.cnmec@parkerdistribution.com.cn
