Parekr无溢流型 FEM/IF系列平面快速接头

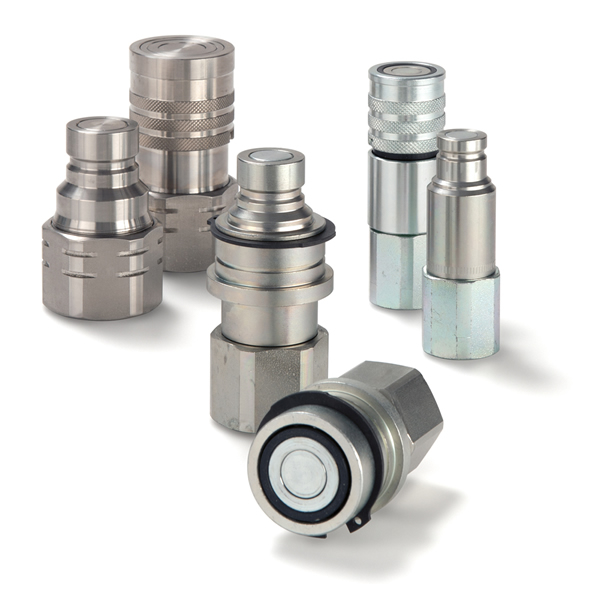

Parker's Flat Face Quick Coupling FEM / IF series quick couplings
HYDRAULIC FLAT FACE QUICK COUPLING WITH ISO 16028 PROFILE, SERIES FEM / IF
Parker's Flat Face Quick Coupling FEM / IF series is produced according to the ISO 16028 and is compatible with other series complying with the same standard. These couplings offer a leckage free disconnection with a minimal oil loss during uncoupling. Thanks to the valve design, the coupling has a minimum pressure drop, and thus achieves maximum cost-effectiveness. The standard version of series FEM / IF is available made of steel or stainless steel.Flat Face quick coupling system with body size 1/8" up to 1" for medium pressure applications up to 450 bar. Coupling system with ISO 16028 Profile.
Parker's Flat Face Quick Coupling FEM / IF series quick couplings - size 1/8" up to 1" 450 bar.
Coupling system with ISO 16028 Profile资料下载
- Parker无溢流型 FEM/IF系列
密封材料及温度范围：丁晴橡胶：碳钢的标准密封材料，-40℃～+120℃
氟橡胶：316不锈钢的标准密封材料，-25℃～+200℃
本体材料：碳钢
316不锈钢
优势与优点：符合ISO 16028标准要求
平齐端面阀芯，无溢流
快插式连接
可选碳钢及316不锈钢材料
标配套筒锁
阴阳接头均可选背压释放器设计，可在高达工作压力的背压下连接快换
可选集成模板型式
应用行业Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction
FEM / IF系列 – 阴接头
碳钢 |
型号 |
本体尺寸
inch |
工作压力bar |
螺纹A |
六角HEX
mm |
总长 L mm |
最大直径D mm |
FEM-121-2FB |
1/8 |
450 |
G 1/8 |
19 |
40 |
21 |
FEM-251-4FB |
1/4 |
315 |
G 1/4 |
27 |
64 |
30 |
FEM-251-4FP-NL |
1/4 |
315 |
1/4-18NPSF |
27 |
64 |
30 |
FEM-371-6FB |
3/8 |
250 |
G 3/8 |
30 |
71 |
32 |
FEM-371-8FB |
3/8 |
250 |
G 1/2 |
30 |
73 |
32 |
FEM-371-6FP-NL |
3/8 |
250 |
3/8-18NPSF |
30 |
71 |
32 |
FEM-501-8FB |
1/2 |
250 |
G 1/2 |
36 |
76 |
40 |
FEM-501-12FB |
1/2 |
250 |
G 3/4 |
36 |
80 |
40 |
FEM-501-8FP-NL |
1/2 |
250 |
1/2-14NPSF |
36 |
76 |
40 |
FEM-621-12FB |
5/8 |
250 |
G 3/4 |
40 |
82 |
43 |
FEM-751-12FB |
3/4 |
250 |
G 3/4 |
46 |
96 |
50 |
FEM-751-16FB |
3/4 |
250 |
G 1 |
46 |
102 |
50 |
FEM-751-12FP-NL |
3/4 |
250 |
3/4-14 NPSF |
46 |
97 |
50 |
FEM-1001-16FB |
1 |
200 |
G 1 |
55 |
105 |
60 |
FEM-1001-20FB |
1 |
200 |
G 1 1/4 |
55 |
106 |
60 |
FEM-1001-16FP-NL |
1 |
200 |
1-11 1/2NPSF |
55 |
107 |
60 |
不锈钢 |
型号 |
本体尺寸
inch |
工作压力bar |
螺纹A |
六角HEX
mm |
总长 L mm |
最大直径D mm |
IF2510 RV |
1/4 |
315 |
G 1/4 |
27 |
64 |
30 |
IF3810 RV |
3/8 |
250 |
G 3/8 |
30 |
71 |
32 |
IF3810-50RV |
3/8 |
250 |
G 1/2 |
30 |
73 |
32 |
IF5010 RV |
1/2 |
250 |
G 1/2 |
36 |
76 |
40 |
IF5010-75RV |
1/2 |
250 |
G 3/4 |
36 |
80 |
40 |
IF6310 RV |
5/8 |
250 |
G 3/4 |
40 |
82 |
43 |
IF7510 RV |
3/4 |
250 |
G 3/4 |
46 |
96 |
50 |
IF7510-100RV |
3/4 |
250 |
G 1 |
46 |
102 |
50 |
IF10010 RV |
1 |
200 |
G 1 |
55 |
105 |
60 |
IF10010-125RV |
1 |
200 |
G 1 1/4 |
55 |
106 |
60 |
碳钢，带背压释放器 |
型号 |
本体尺寸
inch |
工作压力bar |
螺纹A |
六角HEX
mm |
总长 L mm |
最大直径D mm |
FEC-251-4FB |
1/4 |
315 |
G 1/4 |
27 |
91 |
30 |
FEC-371-6FB |
3/8 |
250 |
G 3/8 |
30 |
99 |
32 |
FEC-501-8FB |
1/2 |
250 |
G 1/2 |
40 |
112 |
43 |
FEC-621-12FB |
5/8 |
250 |
G 3/4 |
40 |
117 |
43 |
FEC-751-12FB |
3/4 |
250 |
G 3/4 |
50 |
130 |
54 |
FEC-1001-16FB |
1 |
200 |
G 1 |
55 |
143 |
60 |
FEC-1001-20FB |
1 |
200 |
G 1 1/4 |
55 |
146 |
60 |
FEM / IF系列 – 阳接头
| 碳钢 |
型号 |
本体尺寸
inch |
工作压力bar |
螺纹A |
六角HEX
mm |
总长 L mm |
最大直径D mm |
FEM-122-2FB |
1/8 |
450 |
G 1/8 |
17 |
35 |
19 |
FEM-252-4FB |
1/4 |
315 |
G 1/4 |
22 |
49 |
25 |
FEM-252-4FP |
1/4 |
315 |
1/4-18NPSF |
22 |
49 |
27 |
FEM-372-6FB |
3/8 |
250 |
G 3/8 |
30 |
58 |
32 |
FEM-372-8FB |
3/8 |
250 |
G 1/2 |
30 |
60 |
32 |
FEM-372-6FP |
3/8 |
250 |
3/8-18NPSF |
30 |
58 |
30 |
FEM-502-8FB |
1/2 |
250 |
G 1/2 |
36 |
66 |
40 |
FEM-502-12FB |
1/2 |
250 |
G 3/4 |
36 |
70 |
40 |
FEM-502-8FP |
1/2 |
250 |
1/2-14NPSF |
36 |
71 |
36 |
FEM-622-12FB |
5/8 |
250 |
G 3/4 |
40 |
71 |
40 |
FEM-752-12FB |
3/4 |
250 |
G 3/4 |
46 |
77 |
50 |
FEM-752-16FB |
3/4 |
250 |
G 1 |
46 |
83 |
50 |
FEM-752-12FP |
3/4 |
250 |
3/4-14 NPSF |
46 |
78 |
50 |
FEM-1002-16FB |
1 |
200 |
G 1 |
55 |
89 |
60 |
FEM-1002-20FB |
1 |
200 |
G 1 1/4 |
55 |
90 |
60 |
FEM-1002-16FP |
1 |
200 |
1-11 1/2NPSF |
55 |
90 |
60 |
不锈钢 |
型号 |
本体尺寸
inch |
工作压力bar |
螺纹A |
六角HEX
mm |
总长 L mm |
最大直径D mm |
IF2520 RV |
1/4 |
315 |
G 1/4 |
22 |
|
|
IF3820 RV |
3/8 |
250 |
G 3/8 |
30 |
|
|
IF3820-50RV |
3/8 |
250 |
G 1/2 |
30 |
|
|
IF5020 RV |
1/2 |
250 |
G 1/2 |
36 |
|
|
IF5020-75RV |
1/2 |
250 |
G 3/4 |
36 |
|
|
IF6320 RV |
5/8 |
250 |
G 3/4 |
40 |
|
|
IF7520 RV |
3/4 |
250 |
G 3/4 |
46 |
|
|
IF7520-100RV |
3/4 |
250 |
G 1 |
46 |
|
|
IF10020 RV |
1 |
200 |
G 1 |
55 |
|
|
IF10020-125RV |
1 |
200 |
G 1 1/4 |
55 |
|
|
碳钢，带背压释放器 |
型号 |
本体尺寸
inch |
工作压力bar |
螺纹A |
六角HEX
mm |
总长 L mm |
最大直径D mm |
FEC-252-4FB |
1/4 |
315 |
G 1/4 |
27 |
74 |
30 |
FEC-372-6FB |
3/8 |
250 |
G 3/8 |
30 |
87 |
32 |
FEC-502-8FB |
1/2 |
250 |
G 1/2 |
40 |
98 |
43 |
FEC-622-12FB |
5/8 |
250 |
G 3/4 |
40 |
101 |
43 |
FEC-752-12FB |
3/4 |
250 |
G 3/4 |
50 |
114 |
54 |
FEC-1002-16FB |
1 |
200 |
G 1 |
55 |
126 |
60 |
FEM / IF系列 – 防尘盖
| 阴接头防尘塞 |
阳接头防尘塞 |
型号 |
本体尺寸
inch |
材质 |
型号 |
本体尺寸inch |
材质 |
IB3826 |
1/8 |
蓝色橡胶 |
IB2526 |
1/8 |
蓝色橡胶 |
PFE-251-P |
1/4 |
黑色橡胶 |
CFE-252-P |
1/4 |
黑色橡胶 |
PFE-371-P |
3/8 |
黑色橡胶 |
CFE-372-P |
3/8 |
黑色橡胶 |
PFE-501-P |
1/2 |
黑色橡胶 |
CFE-502-P |
1/2 |
黑色橡胶 |
PFE-621-P |
5/8 |
黑色橡胶 |
CFE-622-P |
5/8 |
黑色橡胶 |
PFE-751-P |
3/4 |
黑色橡胶 |
CFE-752-P |
3/4 |
黑色橡胶 |
PFE-1001-P |
1 |
黑色橡胶 |
CFE-1002-P |
1 |
黑色橡胶 |
Features/Benefits:
- Safety locking feature as standard to prevent unintentional uncoupling
- FEC with the pressure eliminator enable effortless connection under static pressure (up to rated working pressure)
- FEMP and FECP with pushpull features is suitable for multi-plates or when coupling is fixed on an application
Applications:
Easy dry break connection / disconnection in hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Hydraulic tools
- Presses
- Molding machines
