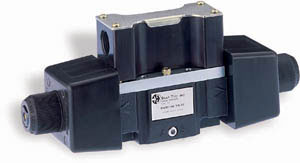

Marstan超高压电磁换向阀 Snap-tite's directional control valves
应用范围：试验台、储能器油路、高压夹紧以及阀操纵器的方向控制。
- 承压面的密封几乎可达内部零泄漏，内部泄露情况随时间的增加得到改善
- 国家防火协会（NFPA）01尺寸系列的板式安装允许改进使用
- 可应用于电磁操纵、手动或气动操纵
- 启动力低
- 流量为每分钟4美制加仑（15升/分钟）
- 铝制阀体、钢制滑阀和密封件
- 工作压力可达10000psi（690bar）
- 底板可以使用1/4英寸的接头
Snap-tite’s directional control valves provide control of fluid direction with virtually zero leakage. These unique valves often eliminate the need for an additional check valve.
Snap-Tite Marstan : Directional Control Valves Low Flow, High Pressure Directional Control Valve
Marstan超高压电磁换向阀
- Virtually Zero Internal Leakage
- NFPA 01/D03 Size Subplate Mounting
- Sealing Advantages of a Pressure Loaded Face Seal Valve
- High Pressure Capability - 3,500 psi, 6,000 psi, & 10,000 psi (245, 415, & 690 bar respectively.)
- Variety of Actuation Options - Solenoid, manual, or pneumatic actuation
- Wide Range of Internal Porting
Snap-Tite Directional Control Valves Stainless Steel Rotary Style Directional Control Valve
- Working Pressure to 5,000 psi (345 bar)
- Pressure Energized Face Seal
- Excellent Metering Characteristics
- Flow Range to 83 gpm (315 l/min)
- Available Sizes - 1/4" thru 1"
- Variety of Mounting Options - Vertical, horizontal or manifold mounting
- Long-Life, Anti-Wear Design
- Contamination Resistant
- Valve Construction - 316 stainless steel housing with steel internals
- Competitive with Barksdale and Teledyne Republic Valves
Item # |
Connection Size |
Seal Material |
| 7350-100 |
1/4" Seal Kit |
Buna N |
| 7350-100V |
1/4" Seal Kit |
Viton |
| 7350-101 |
3/8" Seal Kit |
Buna N |
| 7350-101V |
3/8" Seal Kit |
Viton |
| 7350-102 |
1/2" Seal Kit |
Buna N |
| 7350-102V |
1/2" Seal Kit |
Viton |
| 7350-103 |
3/4" & 1" Seal Kit |
Buna N |
| 7350-103V |
3/4" & 1" Seal Kit |
Viton |
| J4230HUCD |
Four Horizontal 1/4" SAE Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| J4230HUMD |
Four Horizontal 1/4" SAE Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Buna N |
| J4230HUODV |
Four Horizontal 1/4" SAE Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Viton |
| J4230HUOS |
Four Horizontal 1/4" SAE Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 3 Position Handle |
Buna N |
| J4230VUCD |
Four Vertical 1/4" SAE Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| J4230VUCS |
Four Vertical 1/4" SAE Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| J4230VUCSN |
Four Vertical 1/4" SAE Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle (non Inter-flow) |
Buna N |
| J4230VUMD-3 |
Four Vertical 1/4" SAE Port, 3000 psi, Universal Mount, Float Center, Detent 2 Position 45o CCW Handle |
Buna N |
| J4230VUMS |
Four Vertical 1/4" SAE Port, 3000 psi, Universal Mount, Float Center, Spring Center 3 Position Handle |
Buna N |
| J4230VUOS |
Four Vertical 1/4" SAE Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 3 Position Handle |
Buna N |
| J4250HTMD-2 |
Four Horizontal 1/4" SAE Port, 5000 psi, Table Mount, Float Center, Detent 2 Position 45o CW Handle |
Buna N |
| J4250VUCD |
Four Vertical 1/4" SAE Port, 5000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| J4250VUCDN |
Four Vertical 1/4" SAE Port, 5000 psi, Universal Mount, Closed Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| J4250VUCS |
Four Vertical 1/4" SAE Port, 5000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| J4250VUND |
Four Vertical 1/4" SAE Port, 5000 psi, Universal Mount, Open Center, Detent 3 Position Handle |
Buna N |
| J4330HUCD |
Four Horizontal 3/8" SAE Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| J4330HUCS |
Four Horizontal 3/8" SAE Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| J4330HUCSN |
Four Horizontal 3/8" SAE Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle (non Inter-flow) |
Buna N |
| J4330HUCSN-1 |
Four Horizontal 3/8" SAE Port, 3000 psi, Universal Mount, Closed Center, Spring Center 2 Position 90o Handle (non Inter-flow) |
Buna N |
| J4330HUCSN-2 |
Four Horizontal 3/8" SAE Port, 3000 psi, Universal Mount, Closed Center, Spring Center 2 Position 45o CW Handle (non Inter-flow) |
Buna N |
| J4330HUCSN-3 |
Four Horizontal 3/8" SAE Port, 3000 psi, Universal Mount, Closed Center, Spring Center 2 Position 45o CCW Handle (non Inter-flow) |
Buna N |
| J4330HUMD |
Four Horizontal 3/8" SAE Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Buna N |
| J4330HUOD |
Four Horizontal 3/8" SAE Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| J4330HUOS |
Four Horizontal 3/8" SAE Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 3 Position Handle |
Buna N |
| J4330VUCD |
Four Vertical 3/8" SAE Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| J4330VUCD-1 |
Four Vertical 3/8" SAE Port, 3000 psi, Universal Mount, Closed Center, Detent 2 Position 90o Handle |
Buna N |
| J4330VUCDE |
Four Vertical 3/8" SAE Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Ethylene Propylene |
| J4330VUCS |
Four Vertical 3/8" SAE Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| J4330VUMSN-2 |
Four Vertical 3/8" SAE Port, 3000 psi, Universal Mount, Float Center, Spring Center 2 Position 45o CW Handle |
Buna N |
| J4330VUOD |
Four Vertical 3/8" SAE Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| J4330VUOS |
Four Vertical 3/8" SAE Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 3 Position Handle |
Buna N |
| J4350HUCD-1 |
Four Horizontal 3/8" SAE Port, 5000 psi, Universal Mount, Closed Center, Detent 2 Position 90o Handle |
Buna N |
| J4350HUCD-2 |
Four Horizontal 3/8" SAE Port, 5000 psi, Universal Mount, Closed Center, Detent 2 Position 45o CW Handle |
Buna N |
| J4350HUOD |
Four Horizontal 3/8" SAE Port, 5000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| J4350VUMDN |
Four Vertical 3/8" SAE Port, 5000 psi, Universal Mount, Float Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| J4350VUODV |
Four Vertical 3/8" SAE Port, 5000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Viton |
| J4430HTCD |
Four Horizontal 1/2" SAE Port, 3000 psi, Table Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| J4430HTNSV |
Four Horizontal 1/2" SAE Port, 3000 psi, Table Mount, Open Center, Spring Center 3 Position Handle |
Viton |
| J4430HUCD |
Four Horizontal 1/2" SAE Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| J4430HUMD |
Four Horizontal 1/2" SAE Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Buna N |
| J4430HUND |
Four Horizontal 1/2" SAE Port, 3000 psi, Universal Mount, Open Center, Detent 3 Position Handle |
Buna N |
| J4430HUOD |
Four Horizontal 1/2" SAE Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| J4430HUOS |
Four Horizontal 1/2" SAE Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 3 Position Handle |
Buna N |
| J4430VUCD |
Four Vertical 1/2" SAE Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| J4430VUCT |
Four Vertical 1/2" SAE Port, 3000 psi, Universal Mount, Closed Center, Non-detent 3 Position Handle |
Buna N |
| J4430VUOD |
Four Vertical 1/2" SAE Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| J4430VUODV-3 |
Four Vertical 1/2" SAE Port, 3000 psi, Universal Mount, Tandem Center, Detent 2 Position 45o CCW Handle |
Viton |
| J4430VUOS |
Four Vertical 1/2" SAE Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 3 Position Handle |
Buna N |
| J4630HUCD |
Four Horizontal 3/4" SAE Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| J4630VUMD |
Four Vertical 3/4" SAE Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Buna N |
| JC4430HUOD |
Four Horizontal 1/2" SAE Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle w/ 4th Seal And Case Drain |
Buna N |
| JC4430VUOD |
Four Vertical 1/2" SAE Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle w/ 4th Seal And Case Drain |
Buna N |
| JC4430VUOD-3 |
Four Vertical 1/2" SAE Port, 3000 psi, Universal Mount, Tandem Center, Detent 2 Position 45o CCW Handle w/ 4th Seal And Case Drain |
Buna N |
| M4230VUCD |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| M4230VUCD-2 |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Closed Center, Detent 2 Position 45o CW Handle |
Buna N |
| M4230VUCDN |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| M4230VUCDV |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Viton |
| M4230VUCS |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| M4230VUCSN |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle (non Inter-flow) |
Buna N |
| M4230VUMD |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Buna N |
| M4230VUMD-3 |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Float Center, Detent 2 Position 45o CCW Handle |
Buna N |
| M4230VUMS |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Float Center, Spring Center 3 Position Handle |
Buna N |
| M4230VUND |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Open Center, Detent 3 Position Handle |
Buna N |
| M4230VUOD |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| M4230VUODN |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| M4250VUCD |
Four Vertical Manifold Mounting 1/4" Port, 5000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| M4250VUCDN |
Four Vertical Manifold Mounting 1/4" Port, 5000 psi, Universal Mount, Closed Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| M4250VUCS |
Four Vertical Manifold Mounting 1/4" Port, 5000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| M4250VUND |
Four Vertical Manifold Mounting 1/4" Port, 5000 psi, Universal Mount, Open Center, Detent 3 Position Handle |
Buna N |
| M4330VUCD |
Four Vertical Manifold Mounting 3/8" Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| M4330VUCD-1 |
Four Vertical Manifold Mounting 3/8" Port, 3000 psi, Universal Mount, Closed Center, Detent 2 Position 90o Handle |
Buna N |
| M4330VUCDN |
Four Vertical Manifold Mounting 3/8" Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| M4330VUCDV |
Four Vertical Manifold Mounting 3/8" Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Viton |
| M4330VUCS |
Four Vertical Manifold Mounting 3/8" Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| M4330VUMD |
Four Vertical Manifold Mounting 3/8" Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Buna N |
| M4330VUMDV |
Four Vertical Manifold Mounting 3/8" Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Viton |
| M4330VUMS |
Four Vertical Manifold Mounting 3/8" Port, 3000 psi, Universal Mount, Float Center, Spring Center 3 Position Handle |
Buna N |
| M4330VUND |
Four Vertical Manifold Mounting 3/8" Port, 3000 psi, Universal Mount, Open Center, Detent 3 Position Handle |
Buna N |
| M4330VUOD |
Four Vertical Manifold Mounting 3/8" Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| M4350VUCD |
Four Vertical Manifold Mounting 3/8" Port, 5000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| M4430VUCD |
Four Vertical Manifold Mounting 1/2" Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| M4430VUCS |
Four Vertical Manifold Mounting 1/2" Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| M4430VUMD |
Four Vertical Manifold Mounting 1/2" Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Buna N |
| M4430VUND |
Four Vertical Manifold Mounting 1/2" Port, 3000 psi, Universal Mount, Open Center, Detent 3 Position Handle |
Buna N |
| M4430VUOD |
Four Vertical Manifold Mounting 1/2" Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| M4630VUCDV |
Four Vertical Manifold Mounting 3/4" Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Viton |
| M4630VUMD |
Four Vertical Manifold Mounting 3/4" Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Buna N |
| M4830VUCD |
Four Vertical Manifold Mounting 1" Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| MC4230VUCD-1 |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Closed Center, Detent 2 Position 90o Handle w/ 4th Seal And Case Drain |
Buna N |
| MC4230VUOSN |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 3 Position Handle w/ 4th Seal And Case Drain (non Inter-flow) |
Buna N |
| MC4230VUOSN-3 |
Four Vertical Manifold Mounting 1/4" Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 2 Position 45o CCW Handle w/ 4th Seal And Case Drain (non Inter-flow) |
Buna N |
| MC4250VUCDN |
Four Vertical Manifold Mounting 1/4" Port, 5000 psi, Universal Mount, Closed Center, Detent 3 Position Handle w/ 4th Seal And Case Drain (non Inter-flow) |
Buna N |
| MC4330VUCDV |
Four Vertical Manifold Mounting 3/8" Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle w/ 4th Seal And Case Drain |
Viton |
| MC4330VUCDV-2 |
Four Vertical Manifold Mounting 3/8" Port, 3000 psi, Universal Mount, Closed Center, Detent 2 Position 45o CW Handle w/ 4th Seal And Case Drain |
Viton |
| MC4350VUCD |
Four Vertical Manifold Mounting 3/8" Port, 5000 psi, Universal Mount, Closed Center, Detent 3 Position Handle w/ 4th Seal And Case Drain |
Buna N |
| P4230HTCD |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| P4230HTCD-1 |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Closed Center, Detent 2 Position 90o Handle |
Buna N |
| P4230HTCD-2 |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Closed Center, Detent 2 Position 45o CW Handle |
Buna N |
| P4230HTCDN |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Closed Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| P4230HTCS |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| P4230HTMD |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Float Center, Detent 3 Position Handle |
Buna N |
| P4230HTMD-1 |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Float Center, Detent 2 Position 90o Handle |
Buna N |
| P4230HTMDV |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Float Center, Detent 3 Position Handle |
Viton |
| P4230HTNDV |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Open Center, Detent 3 Position Handle |
Viton |
| P4230HTNSN |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Open Center, Spring Center 3 Position Handle (non Inter-flow) |
Buna N |
| P4230HTOD |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| P4230HTOD-2 |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Tandem Center, Detent 2 Position 90o Handle |
Buna N |
| P4230HTOS |
Four Horizontal 1/4" NPTF Port, 3000 psi, Table Mount, Tandem Center, Spring Center 3 Position Handle |
Buna N |
| P4230HUCD |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| P4230HUCD-1 |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 2 Position 90o Handle |
Buna N |
| P4230HUCD-2 |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 2 Position 45o CW Handle |
Buna N |
| P4230HUCDE |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Ethylene Propylene |
| P4230HUCDN |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| P4230HUCDV |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Viton |
| P4230HUCS |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| P4230HUCSN |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle (non Inter-flow) |
Buna N |
| P4230HUMD |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Buna N |
| P4230HUMD-1 |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Float Center, Detent 2 Position 90o Handle |
Buna N |
| P4230HUMS |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Float Center, Spring Center 3 Position Handle |
Buna N |
| P4230HUMSN |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Float Center, Spring Center 3 Position Handle (non Inter-flow) |
Buna N |
| P4230HUND |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Open Center, Detent 3 Position Handle |
Buna N |
| P4230HUNS |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Open Center, Spring Center 3 Position Handle |
Buna N |
| P4230HUOD |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| P4230HUODN-1 |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Tandem Center, Detent 2 Position 90o Handle (non Inter-flow) |
Buna N |
| P4230HUOS |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 3 Position Handle |
Buna N |
| P4230HUOSN |
Four Horizontal 1/4" NPTF Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| P4230VUCD |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| P4230VUCD-1 |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 2 Position 90o Handle |
Buna N |
| P4230VUCDN |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| P4230VUCDN-1 |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 2 Position 90o Handle (non Inter-flow) |
Buna N |
| P4230VUCDV |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Viton |
| P4230VUCDV-1 |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 2 Position 90o Handle |
Viton |
| P4230VUCS |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| P4230VUCS-3 |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Spring Center 2 Position 45o CCW Handle |
Buna N |
| P4230VUCSN |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle (non Inter-flow) |
Buna N |
| P4230VUCSV |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Viton |
| P4230VUMD |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Buna N |
| P4230VUMD-2 |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Float Center, Detent 2 Position 45o CW Handle |
Buna N |
| P4230VUMDN |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| P4230VUMDV |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Viton |
| P4230VUMS |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Float Center, Spring Center 3 Position Handle |
Buna N |
| P4230VUND |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Open Center, Detent 3 Position Handle |
Buna N |
| P4230VUNS |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Open Center, Spring Center 3 Position Handle |
Buna N |
| P4230VUOD |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| P4230VUODN |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| P4230VUOS |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 3 Position Handle |
Buna N |
| P4230VUOSN-3 |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 2 Position 45o CCW Handle |
Buna N |
| P4230VUOSV |
Four Vertical 1/4" NPTF Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 3 Position Handle |
Viton |
| P4250HUCD |
Four Horizontal 1/4" NPTF Port, 5000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| P4250HUCDN-1 |
Four Horizontal 1/4" NPTF Port, 5000 psi, Universal Mount, Closed Center, Detent 2 Position 90o Handle (non Inter-flow) |
Buna N |
| P4250HUCS |
Four Horizontal 1/4" NPTF Port, 5000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| P4250HUND |
Four Horizontal 1/4" NPTF Port, 5000 psi, Universal Mount, Open Center, Detent 3 Position Handle |
Buna N |
| P4250HUOD |
Four Horizontal 1/4" NPTF Port, 5000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| P4250VUCD |
Four Vertical 1/4" NPTF Port, 5000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| P4250VUCDN |
Four Vertical 1/4" NPTF Port, 5000 psi, Universal Mount, Closed Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| P4250VUCDN-1 |
Four Vertical 1/4" NPTF Port, 5000 psi, Universal Mount, Closed Center, Detent 2 Position 90o Handle |
Buna N |
| P4250VUCS |
Four Vertical 1/4" NPTF Port, 5000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| P4250VUMD |
Four Vertical 1/4" NPTF Port, 5000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Buna N |
| P4250VUMS |
Four Vertical 1/4" NPTF Port, 5000 psi, Universal Mount, Float Center, Spring Center 3 Position Handle |
Buna N |
| P4250VUMSNE-1 |
Four Vertical 1/4" NPTF Port, 5000 psi, Universal Mount, Float Center, Spring Center 2 Position 90o Handle (non Inter-flow) |
Ethylene Propylene |
| P4250VUMSV |
Four Vertical 1/4" NPTF Port, 5000 psi, Universal Mount, Float Center, Spring Center 3 Position Handle |
Viton |
| P4250VUND |
Four Vertical 1/4" NPTF Port, 5000 psi, Universal Mount, Open Center, Detent 3 Position Handle |
Buna N |
| P4250VUOD |
Four Vertical 1/4" NPTF Port, 5000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| P4330HTCD |
Four Horizontal 3/8" NPTF Port, 3000 psi, Table Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| P4330HTCDE |
Four Horizontal 3/8" NPTF Port, 3000 psi, Table Mount, Closed Center, Detent 3 Position Handle |
Ethylene Propylene |
| P4330HTCDN |
Four Horizontal 3/8" NPTF Port, 3000 psi, Table Mount, Closed Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| P4330HTCDNV |
Four Horizontal 3/8" NPTF Port, 3000 psi, Table Mount, Closed Center, Detent 3 Position Handle (non Inter-flow) |
Viton |
| P4330HTCDV |
Four Horizontal 3/8" NPTF Port, 3000 psi, Table Mount, Closed Center, Detent 3 Position Handle |
Viton |
| P4330HTCSN |
Four Horizontal 3/8" NPTF Port, 3000 psi, Table Mount, Closed Center, Spring Center 3 Position Handle (non Inter-flow) |
Buna N |
| P4330HTMD |
Four Horizontal 3/8" NPTF Port, 3000 psi, Table Mount, Float Center, Detent 3 Position Handle |
Buna N |
| P4330HTOD |
Four Horizontal 3/8" NPTF Port, 3000 psi, Table Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| P4330HTODE |
Four Horizontal 3/8" NPTF Port, 3000 psi, Table Mount, Tandem Center, Detent 3 Position Handle |
Ethylene Propylene |
| P4330HTOS |
Four Horizontal 3/8" NPTF Port, 3000 psi, Table Mount, Tandem Center, Spring Center 3 Position Handle |
Buna N |
| P4330HUCD |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle |
Buna N |
| P4330HUCD-2 |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 2 Position 45o CW Handle |
Buna N |
| P4330HUCDN |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle (non Inter-flow) |
Buna N |
| P4330HUCDNV |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Closed Center, Detent 3 Position Handle (non Inter-flow) |
Viton |
| P4330HUCS |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Buna N |
| P4330HUCSN |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle (non Inter-flow) |
Buna N |
| P4330HUCSNV |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle (non Inter-flow) |
Viton |
| P4330HUCSV |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Closed Center, Spring Center 3 Position Handle |
Viton |
| P4330HUMD |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Buna N |
| P4330HUMDE |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Float Center, Detent 3 Position Handle |
Ethylene Propylene |
| P4330HUMS |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Float Center, Spring Center 3 Position Handle |
Buna N |
| P4330HUMSN |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Float Center, Spring Center 3 Position Handle (non Inter-flow) |
Buna N |
| P4330HUMSV |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Float Center, Spring Center 3 Position Handle |
Viton |
| P4330HUND |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Open Center, Detent 3 Position Handle |
Buna N |
| P4330HUND-2 |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Open Center, Detent 2 Position 45o CW Handle |
Buna N |
| P4330HUNS |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Open Center, Spring Center 3 Position Handle |
Buna N |
| P4330HUOD |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Tandem Center, Detent 3 Position Handle |
Buna N |
| P4330HUODV-3 |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Tandem Center, Detent 2 Position 45o CCW Handle |
Viton |
| P4330HUOS |
Four Horizontal 3/8" NPTF Port, 3000 psi, Universal Mount, Tandem Center, Spring Center 3 Position Handle |
Buna N |
|
fcg.cnmec@parkerdistribution.com.cn
